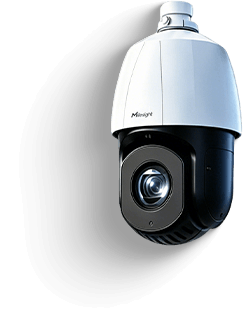

MileSight AI 25X Speed Dome Network Camera - MS-C5342-X25RPG1/M1
MileSight AI 25X Speed Dome Network Camera - MS-C5342-X25RPG1/M1
Model: MS-C5342-X25RPG1/M1
Prix régulier
$1,226.70
Prix de vente
$1,226.70
Prix régulier
Disponible en stock
Open here
MileSight 5 MP AI 25× speed dome IP camera with 4.8–120 mm optical zoom, 120 dB Super WDR, up to 120 m IR coverage and intelligent PTZ auto-tracking for outdoor surveillance.
Impossible de charger la disponibilité du ramassage
- 5 MP image quality at up to 30 fps
- 25× optical zoom, 4.8–120 mm lens
- 360° endless pan; −10° to 90° tilt with auto-flip
- Up to 120 m IR night vision and 120 dB Super WDR
- 300 presets, 8 patrols and 4 patterns
- AI analytics, auto tracking and electronic image stabilization
- MicroSD storage up to 1 TB; PoE+ or DC power
- Outdoor IP66 housing; IK10-rated impact protection subject to model/window
- Support H.265+(Smart Stream)
- 25X Optical Zoom; PTZ Position Display, 3D positioning,
- 300 Preset Points, 8 Patrols, up to 48 presets each patrol; 4 Patterns
- 360°endless / Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s
- -10°~90°(Auto Flip) / Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s
- SD card, up to 1TB
- Heater
- Autotracking、EIS
- Low Power Consumption
- VCA2.0：Intrusion Detection/ Region Entrance/ Region Exiting/ Advanced Motion Detection/ Line Crossing/ Loitering/ Object Left/Removed
- Object Counting (Crossing Line People/Vehicle/ Regional People) / Face Detection/ Attribute Detection/PPE
| Camera & optics | |
|---|---|
| Model | MS-C5342-X25RPG1 |
| Sensor | 1/2.8-inch progressive scan CMOS |
| Max resolution | 2592 × 1944 (5 MP) |
| Max frame rate | 30 fps at 5 MP (60 Hz); 25 fps (50 Hz) |
| Minimum illumination | 0.008 lux color (F1.5); 0 lux B/W with IR on |
| S/N ratio | >55 dB |
| Wide dynamic range | 120 dB Super WDR |
| Shutter | 1/100,000 s to 1 s |
| Day/night | Day / Night / Auto / Customize / Schedule |
| Focal length | 4.8–120 mm, 25× optical zoom |
| Digital zoom | 8× |
| Aperture | F1.5–F3.5 |
| Field of view | Horizontal 52.9°–2.7°; diagonal 66°–3.3°; vertical 39.8°–2.0° |
| Focus | Auto / semi-auto / manual |
| Iris control | Automatic/manual |
| Illumination & PTZ | |
| IR wavelength | 850 nm |
| Night illumination | Up to 120 m IR |
| Pan range | 360° endless |
| Pan speed | Manual 0.1°–80°/s; preset 80°/s |
| Tilt range | −10° to +90°; auto flip |
| Tilt speed | Manual 0.1°–80°/s; preset 80°/s |
| Presets | 300 |
| Patrols | 8 (up to 48 presets per patrol) |
| Patterns | 4 |
| Tracking and image stability | Auto tracking; gyro-based electronic image stabilization (EIS) and PTZ correction |
| PTZ control | 3D positioning, proportional zoom, PTZ position display |
| Streams & imaging | |
| Video compression | H.265+, H.265 (HEVC), H.264+, H.264, MJPEG |
| Video bit rate | 16 Kbps–16 Mbps (CBR/VBR) |
| Primary stream | Up to 2592 × 1944 at 30 fps (60 Hz) |
| Secondary stream | Up to 704 × 576, 640 × 480 and 640 × 360 |
| Image controls | Brightness, contrast, saturation, sharpness; BLC/HLC/DNR/AWB, defog and AGC |
| Privacy masks | Up to 8 |
| ROI | Up to 8 |
| Analytics & storage | |
| AI event detection | Intrusion detection; region entrance/exit; advanced motion detection; line crossing; loitering; left/removed object detection |
| Advanced analytics | Face/attribute detection, human/vehicle counting, hard-hat/PPE detection, privacy protection, fall and violence detection as supported by firmware |
| Edge storage | microSD up to 1 TB; NAS NFS/SMB and ANR |
| ONVIF | Profiles G, M, S, T |
| Network protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, LLDP, RTMP, HTTP/HTTPS, DNS/DDNS/DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1X, QoS, IGMP, ICMP, SSL/TLS 1.2 |
| Connectors & power | |
| Ethernet | 1 × RJ45 10/100 Mbps |
| Alarm inputs/outputs | 2 / 2 |
| Audio input/output | 1 / 1 |
| RS-485 | 1 |
| Audio codecs | G.711, AAC, G.722, G.726 |
| Power | DC 12 V ±30% or PoE+ (IEEE 802.3at, Class 4) |
| Power usage | Approx. 3.46 W min DC; up to 21 W max PoE+ |
| General | |
| Operating temperature | −40 °C to +70 °C |
| Operating humidity | 0–95% RH, non-condensing |
| Housing | Metal + plastic |
| Dimensions | Ø173 × 285 mm |
| Net weight | Approx. 3.1 kg |
| Weather resistance | IP66 |
| Impact resistance | IK10 (excluding dome window; confirm installation/variant) |
| Warranty | 2 years; optional 3-year coverage depending on region |
| NDAA | Yes (per supplied dealer catalog) |
| Exact SKU & dealer catalog cross-check | |
| Galaxy order model | MS-C5342-X25RPG1/M1 |
| Dealer series | PTZ series |
| Production status | MP |
| Catalog material code | 60.018.150012 |
| Catalog resolution | 5MP 2592*1944 |
| Catalog frame rate | 30fps |
| Catalog lens | 25X AF Lens 4.8~120mm |
| Catalog aperture | F1.5~F3.5 |
| Sensor format | 1/2.8'' |
| Field of view | D：66°~3.3° H：52.9°~2.7° V：39.8°~2.0° |
| Catalog WDR | 120dB |
| Catalog IR distance | 120m |
| Color | White |
| Interfaces | DC+PoE+Alarm 2*I/2*O+Audio I/O+RS485 |
| Ingress & impact rating | IP66 IK10(Optional) |
| Housing material | Metal+plastic |
| NDAA | Yes |
