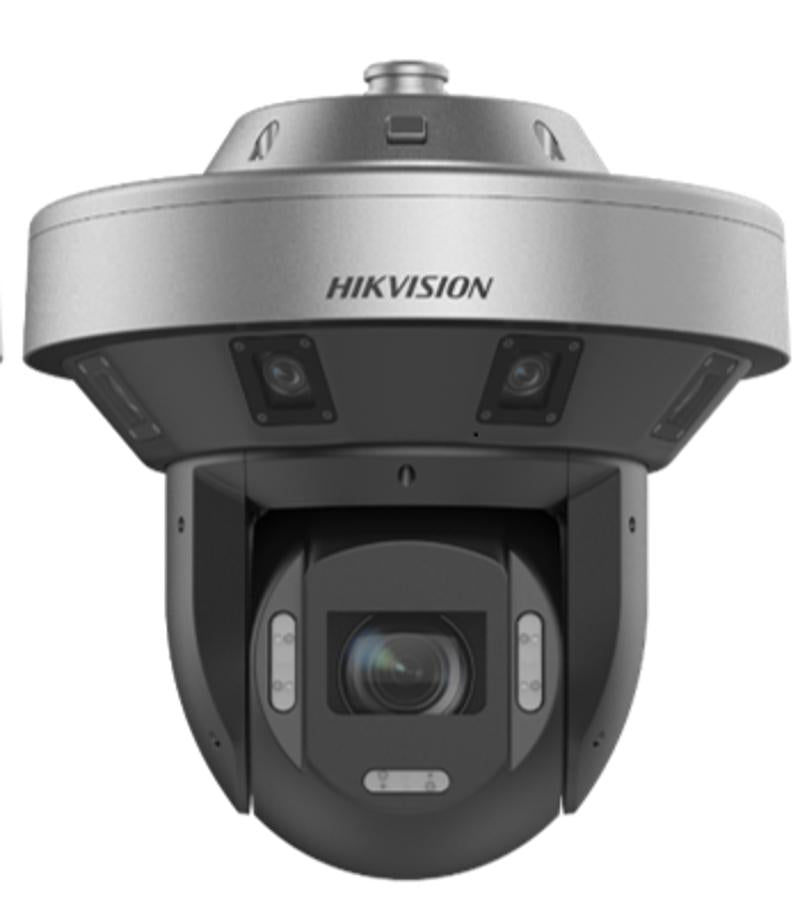

Hikvision PTZ IP Camera DS-2DP8A845IXG1-LF/864(F0)
Hikvision PTZ IP Camera DS-2DP8A845IXG1-LF/864(F0)
Model: DS-2DP8A845IXG1-LF/864(F0)
Prix régulier
$9,383.00
Prix de vente
$9,383.00
Prix régulier
Disponible en stock
Open here
Impossible de charger la disponibilité du ramassage
- High quality imaging with 64 MP resolution, up to 2 × 8160 × 3616 @30 fps for panoramic channels
- True 360° coverage with eight F1.0 lenses, no blind spots in the panoramas
- Excellent low-light performance with DarkFighter 2.0 technology
- 45 × optical zoom and 16 × digital zoom provide close up views over expansive areas
- Expansive night view with up to 500 m IR distance
- With one click on the panoramic channel, the PTZ channel shows the details automatically
- Continous and stable manual tracking, auto-tracking, and panorama tracking
- Automatic switch between multiple targets
- Supports 7 alarm inputs, 2 alarm outputs, 1 audio input, and 1 audio output
| Camera | |
|---|---|
| Image Sensor | [Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.2" progressive scan CMOS |
| Min. Illumination | [Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.5, AGC ON), B/W: 0.0001 Lux (F1.5, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/30000 s |
| Slow Shutter | Yes |
| Day & Night | IR cut filter |
| Zoom | [PTZ channel] 45 × optical, 16 × digital |
| Max. Resolution | 8160 × 3616 |
| Lens | |
| Focus | Auto, semi-auto, manual, rapid focus |
| Focal Length | [Panoramic channel] 2mm; [PTZ channel] 7.1-320mm |
| Zoom Speed | [PTZ channel] Approx. 5.6 s |
| FOV | [Panoramic channel] Horizontal FOV 360°, vertical FOV 110°；[PTZ channel]Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0° |
| Aperture | [Panoramic channel] Max. F1.0, [PTZ channel] Max. F1.5 |
| Illuminator | |
| Supplement Light Type | Laser |
| Supplement Light Range | up to 500 m |
| Smart Supplement Light | Yes |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan Speed | Pan speed: configurable from 0.1° to 500°/s; preset speed: 500°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 350°/s, preset speed 350°/s |
| Proportional Pan | [Panoramic channel]: no; [PTZ channel]: yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Yes |
| Park Action | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Video | |
| Main Stream | [Panoramic channel]: 50Hz: 25fps (32MP：8160×3616×2, 5520×2400×2, 8MP：4096×1800×2,3840×1680×2, 2720×1192×2); 60Hz: 30fps (32MP：8160×3616×2, 5520×2400×2, 8MP：4096×1800×2,3840×1680×2, 2720×1192×2) [PTZ channel]: 50Hz:25fps (3840×2160,2560×1440,1920×1080,1280×960,1280×720) 60Hz: 24fps(3840×2160,2560×1440,1920×1080,1280×960,1280×720) |
| Sub-Stream | [Panoramic channel]: 50Hz: 25fps (1560×656×2,704×320×2, 8MP: 704×320×2,512×232×2) 60Hz: 30fps (1560×656×2,704×320×2, 8MP: 704×320×2,512×232×2) [PTZ channel]: 50Hz: 25fps(704×576,640×480,352×288); 60Hz: 24fps(704×480,640×480,352×240) |
| Third Stream | [Panoramic channel]: no [PTZ channel]: 50Hz:25fps (1920×1080,1280×960,1280×720,704×576,640×480,352×288) 60Hz: 24fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| Audio | |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM |
| Audio Sampling Rate | PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC: 16 kHz, 32 kHz, 48 kHz |
| Network | |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Security | Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter |
| Client | iVMS-4200, HikCentral Pro, Hik-Connect |
| Web Browser | IE10-11, Chrome 57+, Firefox 52+, Safari 12+ |
| Image | |
| Day/Night Switch | Day, night, auto, scheduled-switch |
| Image Enhancement | BLC, HLC, 3D DNR |
| Wide Dynamic Range (WDR) | [Panoramic channel] no, [PTZ channel] 120 dB |
| Defog | [Panoramic channel]: no; [PTZ channel]: optical defog |
| Image Stabilization | EIS (Built-in gyroscope to improve EIS performance),OIS |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Image Parameters Switch | Yes |
| Privacy Mask | Programmable polygon privacy masks (8 for panoramic channel, 24 for PTZ channel), mask color or mosaic configurable |
| SNR | ≥ 55 dB |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet port |
| Fiber Optical | 1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB |
| Alarm | 7 alarm inputs, 2 alarm outputs |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset | Yes |
| Event | |
| Smart Event | [Panoramic channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection [PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection, loitering detection, people gathering detection, fast moving detection, parking detection, unattended baggage detection, object removal detection |
| Smart Tracking | Manual tracking, auto-tracking, panorama tracking. Support patrol tracking among multiple detection scenes |
| Alarm Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) |
| Deep Learning Function | |
| Multi-Target-Type Detection | [PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle |
| People Density | Supports detecting the level of people density in the configured area |
| Congestion Alarm | Yes |
| General | |
| Power | 36 VDC±20%, max. 135 W (including max. 12 W for IR) |
| Operating Condition | -40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing) |
| Wiper | No |
| Demist | Yes |
| Material | ADC12 |
| Dimension | Ø 427.6 mm x 425.9 mm(Ø16.8" × 16.7") |
| Weight | Approx. 14.6kg |
| Approval | |
| Safety | CB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10 |
