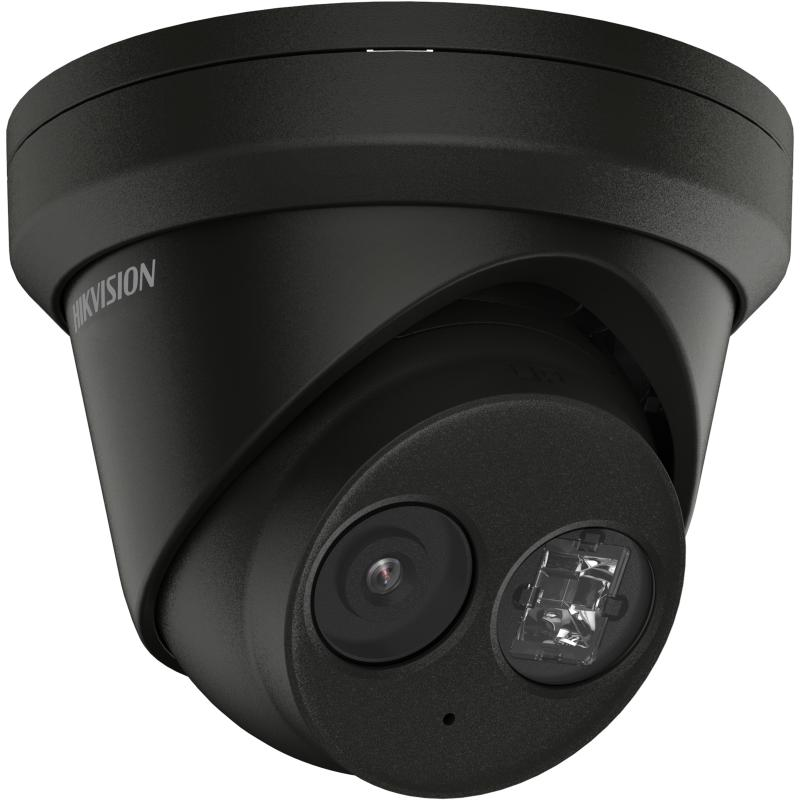

Hikvision 8MP Turret IP Camera DS-2CD2383G2-IU 2.8mm black
Hikvision 8MP Turret IP Camera DS-2CD2383G2-IU 2.8mm black
Model: DS-2CD2383G2-IU 2.8mm black
Prix régulier
$279.00
Prix de vente
$279.00
Prix régulier
Disponible en stock
Open here
- High quality imaging with 8 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 120 dB WDR technology
- Focusing on human and vehicle classification based on deep learning
- U: Built-in arrayed dual-microphone for real-time audio security
- Water and dust resistant (IP67)
Impossible de charger la disponibilité du ramassage
- 8 MP imaging at up to 3840 × 2160
- AcuSense human and vehicle classification
- 120 dB WDR
- H.265+ video compression
- Built-in arrayed microphone on IU variant
- IP67 outdoor protection
| Model | DS-2CD2383G2-IU 2.8mm black |
|---|---|
| Image Sensor | 1/2.8 inch Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.005 lux @ (F1.6, AGC ON); B/W: 0 lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan 0°–360°; tilt 0°–75°; rotate 0°–360° |
| Lens Type | Fixed focal lens, 2.8 mm or 4 mm |
| Focal Length & FOV | 2.8 mm: horizontal 107°, vertical 57°, diagonal 128°; 4 mm: horizontal 87°, vertical 46°, diagonal 105° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 mm: D 88 m / O 35 m / R 17 m / I 9 m; 4 mm: D 108 m / O 43 m / R 22 m / I 11 m |
| Supplement Light Type | IR |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Supplement Light Range | Up to 30 m |
| Video Compression | Main: H.265/H.264/H.264+/H.265+; sub: H.265/H.264/MJPEG; third: H.265/H.264 |
| Main Stream | 3840 × 2160 @ 20 fps (50/60 Hz); up to 25/30 fps at lower resolutions |
| Sub-Stream | 640 × 480 or 640 × 360 @ 25/30 fps |
| Third Stream | 1920 × 1080 / 1280 × 720 / 640 × 480 / 640 × 360 @ 10 fps (under supported settings) |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline/Main/High Profile |
| H.265 Type | Main Profile |
| Power Supply | 12 VDC ±25% or PoE (802.3af, Class 3) |
| Power Consumption | 12 VDC: max. 6 W; PoE: max. 7.5 W |
| Network Storage | NAS (NFS, SMB/CIFS), ANR; local card support depends on installed variant |
| Protection | IP67 |
| Camera Material | Aluminum alloy body |
| Camera Dimensions | Ø127.3 × 95.9 mm |
| Package Dimensions | 150 × 150 × 141 mm |
| Operating Conditions | -30 °C to +60 °C; ≤95% RH non-condensing |
| General Function | Anti-flicker, heartbeat, password reset by email, pixel counter |
| Smart Detection | AcuSense human and vehicle target classification |
| Product Category | Cameras Products |
| Product Series | Pro Series(EasyIP) |
| Maximum Resolution | 3840 × 2160 |
| Minimum Illumination | Color: 0.005 Lux @ F1.6; B/W: 0 Lux with IR |
| Human / Vehicle Classification | Supported |
| Built-in Microphones | Arrayed dual microphone |
| Operating Temperature | -30 °C to +60 °C |
| Focal Length (SKU) | 2.8 mm |
| Product Type | Network Cameras |
| Offering | EasyIP 2.0 Plus with AcuSense |
| Case Type | Turret |
| WDR | 120 dB |
| Environmental Protection | IP67 |
| Net Weight (g) | 640 |
| Single Package Length (mm) | 150 |
| Single Package Width (mm) | 150 |
| Single Package Height (mm) | 141 |
| Single Package Weight (g) | 888 |
| U | Built-in arrayed dual-microphone for real-time audio security |
