Data Sheet

Code du produit:

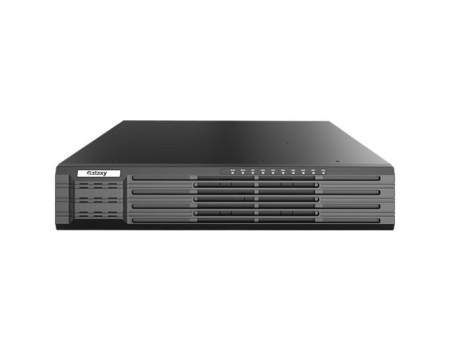

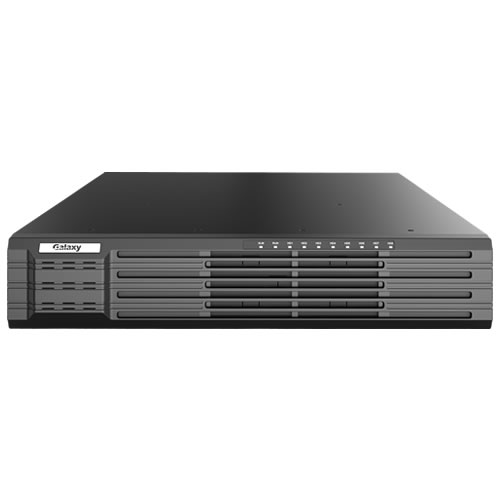

NVR8832-RN

Résumé:

up to 32MP32CH IP up to 32MP, 384Mbps, 2x HDMI up to 4K, 2x VGA, Ultra 265/H.265/H.264, 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30, People Counting, Audio 1in/1out, Alarm 16in/10out, 2x RJ45 10/100/1000M, 8x SATA up to 16TB/ea, 2xUSB2.0, 2xUSB3.0, 1x eSATA, 1x RS-232, 1x RS-485

  • Support Ultra 265/H.265/H.264 video formats
  • 32/64/128-channel input
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output
  • Up to 32 Megapixels resolution recording
  • 8 SATA HDDs, up to 16TB for each HDD
  • Support N+1 Hot spare
  • Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
  • Redundant power supply optional
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
Decoding Description
Decoding Format Ultra 265,H.265,H.264
Decoding Capability NVR508-32E-R: 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30
NVR508-64E-R: 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30, 54 x 960P@25, 64 x 720P@30
NVR508-128E-R: 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@25, 72 x 720P@30, 128 x D1
Audio Compression G.711A,G.711U
Network Description
Incoming Bandwidth 384Mbps
Outgoing Bandwidth 384Mbps
Remote Users 128
Protocols TCP/IP,P2P,UPnP,NTP,DHCP,PPPoE,HTTP,HTTPS,DNS,DDNS,SNMP,SMTP,NFS,RTSP,802.1x,IPV6
Browser(Plugin) IE(IE10/11)for Windows,Firefox(version 52.0 and above)for Windows,Chrome(version 45 and above)for Windows,Edge(version 79 and above)for Windows
Video/Audio Input Description
RCA Audio Input 1-ch
Video/Audio Output Description
HDMI Output HDMI1,HDMI2:4K(3840x2160)/60Hz,4K(3840x2160)/30Hz,1920x1080/60Hz,1920x1080/50Hz,1600x1200/60Hz,1280x1024/60Hz,1280x720/60Hz,1024x768/60Hz
VGA Output VGA1,VGA2:1920x1080/60Hz,1920x1080/50Hz,1600x1200/60Hz,1280x1024/60Hz,1280x720/60Hz,1024x768/60Hz
RCA Audio Output 2-ch
Liveview Display NVR508-32E-R:1/4/6/8/9/16/25/36
NVR508-64E-R:
HDMI1/VGA1:1/4/6/8/9/16/25/36/64,HDMI2/VGA2:1/4/6/8/9/16/25/36
NVR508-128E-R:
HDMI1/VGA1:1/4/6/8/9/16/25/36/64, HDMI2/VGA2:1/4/6/8/9/16/25/36
Corridor Mode Screen 3/4/5/7/9/10/12/16/32
Two-way Audio Description
Two-way Audio 1-ch,RCA(Using the audio input and output)
Snapshot Description
FTP/Schedule/Event Snapshot 16-ch snapshot,up to 1080P resolution
Recording Description
Recording Resolution 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local 16-ch
Smart Description
VCA Detection by IPC Vehicle Detection,SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area),Ultra Motion Detection(UMD),Temperature Detection(Fire Detection,Smoking Detection,Temperature Measurement,Smoke and Fire Detection),People Counting(People Flow Counting,Crowd Density Monitoring),Video Metadata,Traffic Monitoring
VCA Search Motor Vehicle Search,Non-Motor Vehicle Search, General Search,People Counting Report,Heat Map
Smart by IPC Total 16-ch(Vehicle Detection,Temperature Detection,SIP,UMD,Video Metadata,Traffic Monitoring)
Vehicle Picture Library Up to 5 vehicle picture libraries,with up to 25,000 vehicle pictures in total
Alarm Description
General Alarm Defocus Detection,Scene Change Detection,Object Left Behind,Object Removed,Auto Tracking,Motion Detection,Tampering, Video Loss Alarm Input,Audio Detection
Alert Alarm IP Conflict,Network Disconnected,Disk Offline,Disk Abnormal,Illegal Access,Hard Disk Space Low,Hard Disk Full,Recording/Snapshot Abnormal
Hard Disk Description
SATA 8 SATA Interfaces
Capacity Up to 16TB for each disk
Disk Group Support
Disk Array Type RAID 0,1,5,6,10
External Interface Description
Network Interface 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
USB Front panel: 2 x USB2.0,Rear panel: 2 x USB3.0
RS485 1
RS232 1
Alarm In 16-ch
Alarm Out 10-ch
eSATA 1
Power Output 12V
Power Supply AC 100~240V Power Consumption: </= 50W (without HDD)
Working Environment Description
Working Temperature -10°C ~ + 55°C (+14°F ~ +131°F)
Working Humidity </= 90% RH (non-condensing)
Power Consumption (without HDD) </= 50W
Dimensions Description
Weight (without HDD) </= 6Kg (13.23lb)
Dimensions 442mm × 448mm × 93mm (17.4" × 17.6" × 3.7")
Certification Description
Certification CE,FCC,UL,RoHS,WEEE
CE EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035
FCC Part15 Subpart B
