Data Sheet

Code du produit:

EZVIZ-C6N-3MP

Résumé:

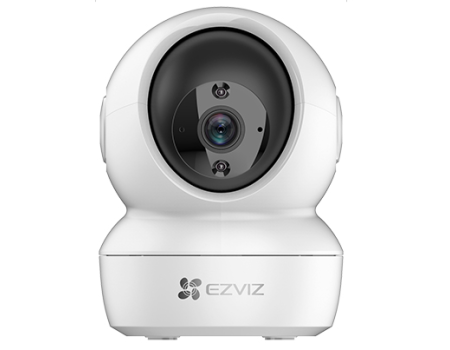

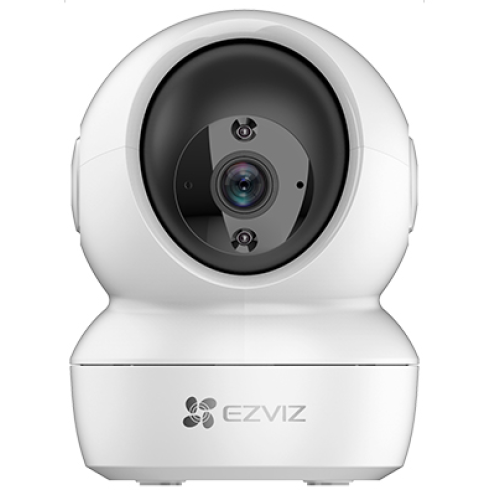

Watch over your entire space easily with the C6N Camera’s 360-degree field-of-view and its smart tracking feature. It’s got you covered – all day & all night.

  • 2K Resolution
  • Smart Night Vision(up to 10m / 33ft.)
  • Motorized Pan and Tilt for 360° Visual Coverage
  • Two-Way Talk
  • Smart Tracking
  • Sleep Mode for Privacy Protection
  • H.265 Video Technology
  • View from Anywhere
  • MicroSD Slot(up to 256 GB)
  • Motion Detection
  • Wi-Fi 2.4 GHz
Camera
Image sensor F2.0@1/2.7" Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Lens 4mm, view angle: 104°(Diagonal), 85° (Horizontal), 55°(Vertical)
Lens Mount M12
Day & Night IR-cut filter with auto-switching
DNR 3D DNR
WDR Digital WDR
Compression
Video Compression H.265 / H.264
Video Bit Rate Quad HD, Full HD, HD, Standard. Adaptive bit rate.
Max. Resolution 2304 × 1296
Frame Rate Max. 20 fps; Self-Adaptive during network transmission
Network
Smart Alarm Motion detection
Wi-Fi Pairing AP pairing
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol
Interface
Storage Micro SD card slot (Max. 256G)
Power Micro USB
Wired Network RJ45 × 1 (10M/100M self-adaptive Ethernet port)
Wi-Fi
Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20MHz
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps
Output Power(EIRP) 19 dBm
Antenna Gain 1.9 dBi
General
Operating Conditions -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
Power Supply DC 5V/1A
Power Consumption Max. 5W
IR Range Max. 10 m (32.81 ft)
Dimensions 88 × 88.2 × 119 mm (3.46 × 3.47 × 4.69 inch)
Packaging Dimensions 103 × 103 × 186 mm (4.06 × 4.06 × 7.30 inch)
Bare Weight 252g (8.89 oz)
In the box:
In the box: - C6N Camera
- Base
- Screw Kit
- Power Cable 3m (9.8 ft.)
- Drill Template
- Power Adapter
- Quick Start Guide
- Regulatory Information
Certifications:
Certifications: FCC / UL / CE / WEEE / REACH / ROHS
