Data Sheet

Code du produit:

DH-VCS-SH30

Résumé:

Aviation Aluminum material, anti-corrosion, perfect for outdoor use, Simple Installation with PoE up to 100 meters, Plug and play, ONVIF, 512MB storage and support TF card, Support 1 key reset, Support - 40 Degree, IP67, 225mm x 170mm x 250mm, 3.97LB

  • Aviation aluminum material, warm white, exquisite appearance, stain less steel hanger, anti-corrosion,perfect for outdoor environments in most climates.
  • Simple installation with PoE, maximum connection distance up to 100 meters.Embedded network port, not easy to break, easy to plug and unplug.
  • Supports multiple network protocols for easy configuration,support ONVIF protocol, horn can carry out information scanning, broadcasting, intercom,upport standard SIP protocol, can use intercom function with standard SIP system,Support viewing and modifying the software parameters of the horn through the web page.
  • Storage: 512MB and support TF card.
  • Support auxiliary input, insert 24V adapter, ordinary switch can also be used.
  • Support one-key reset (1 reset button).

Microphone

Type

Built-in one microphone

Pickup Distance

>/=8m

Frequency Response

50Hz-12KHz

MIC Input

15mV

Speaker

Max Sound Pressure Level

120dB

SNR

>/=75dB

Frequency Response

250Hz-16KHz

Coverage Pattern

70° horizontal by 100° vertical

Speaker Output

15W

Amplifier

Amplifier Description

Built-in 15W, 8 Ohm amplifier

Interface

TF Card Interface

Support TF card storage

24V Auxiliary Input

Insert 24V adapter, can use ordinary network

MIC Input

Pickup distance >/= 8 m, built-in 1 microphone switch

Network

Network Port

RJ45

Network Protocol

TCP, UDP, ARP, ICMP, IGMP, DHCP, IGMP,HTTP,SIP,ONVIF

General

Audio Protocol

MP3, G.711a/u.G. 722

Storage

512MB and TF card

Power Input

PoE+(IEEE 802.3at) / DC24V 1A (Standby)

Power Consumption

15W

Operating Temperature

-40°C ~+60°C(-40 °F ~+140 °F)

Operating Humidity

60%~95% RH

Protection Level

IP67

Certifications

EMC

EN 55032 Class B, EN 50121-4, IEC 62236-4, EN 55024,

EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), VCCI Class B, RCM AS/NZS CISPR 32 Class B, KC KN32 Class B, KC KN35

Safety

IEC/EN/UL 62368-1, IEC/EN/UL 60950-22

Environment

IEC/EN 60529 IP67, IEC 60068-2-1, IEC 60068-2-2,

IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78,

IEC/EN 60529 IP66, NEMA 250 Type 4X, MIL-STD-810G 509.5

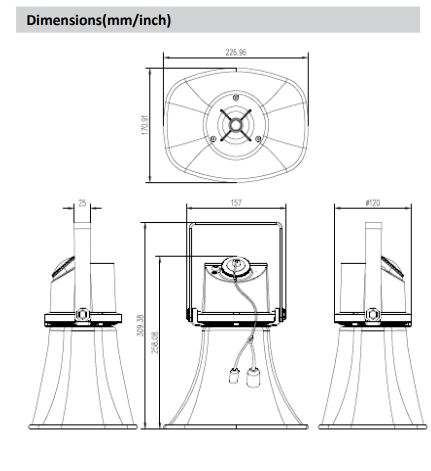

Dimensions

225mm x170mm x 250mm(8.85" × 6.69" × 9.84") (L

× W × H))

Packaging Dimensions

240mm x200mm x 275mm(9.45" × 7.87" × 10.83") (L

× W × H))

Net Weight

1.8kg(3.97lb)

Gross Weight

2.5kg(5.51lb)
