Data Sheet

Code du produit:

TL-POE4824G

Résumé:

48V passive PoE supported, Auto-determine the necessary power requirements, Convenient wall-mounting design, Gigabit speed support, Plug-and-Play, requires no configuration

  • 48V passive PoE supported
  • Auto-determine the necessary power requirements
  • Convenient wall-mounting design
  • Gigabit speed support
  • Plug-and-Play, requires no configuration
HARDWARE FEATURES
Interface 1 10/100/1000Mbps RJ45 Shielded Data IN Port
1 10/100/1000Mbps RJ45 Shielded Passive PoE Port
1 48VDC POWER INPUT PORT
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100? STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100? STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
LED Indicator PWR
Dimensions ( W x D x H ) 4.3 × 2.3 × 1.5 in.
(110×57×38.8 mm)
OTHERS
Certification FCC, CE, RoHS

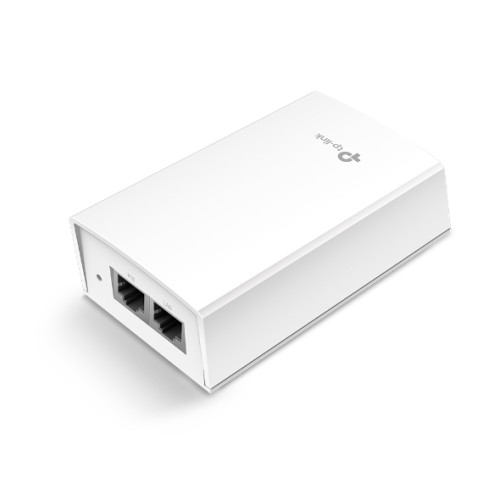

Package Contents 48V 24W Passive PoE Adapter TL-POE4824G
Power Cord
Wall Mounting Kits
Environment Operating Temperature: 0C~40C (32?~104?)
Storage Temperature: -40C~70C (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
