Data Sheet

Code du produit:

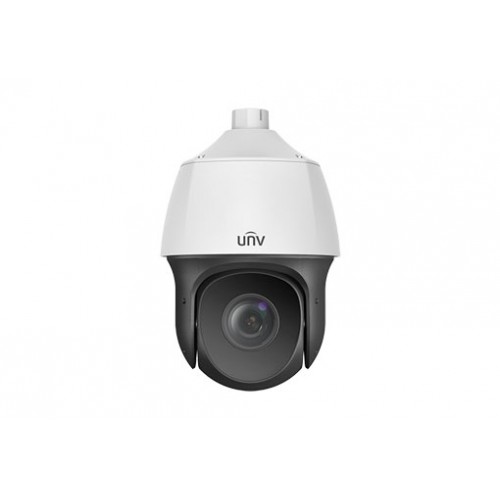

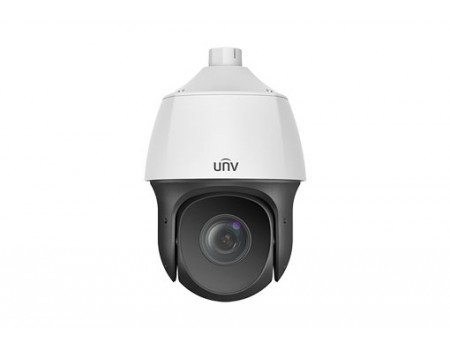

IPC6612SR-X33-VG

Résumé:

SID trigger Auto tracking, 2MP Lighthunter Network PTZ Dome Camera, 120dB WDR, IP66, 33X optical zoom, HLC, PoE, Smart functions, Starlight, Full Harness, 1/2.8" CMOS, ICR, 1920x1080:30fps, Ultra 265/H.264/MJPEG, Triple streams, DC12V/PoE, Micro SD card slot, Alarm I/O 2/1, Audio I/O 1/1 , -40-65℃, IP66, 33x optical zoom(4.5~148.5mm), IR range: up to 150m, IR anti-reflection window.

• High quality image with 2MP,1/2.8’’ CMOS sensor
• 1920*1080@30fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• 33X optical zoom allows for closer viewing of subjects
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• DC12V or PoE+(IEEE 802.3at) power supply
• Audio 1 in and 1 out, Alarm 2 in and 1 out
• Micro SD, up to 256GB
• Smart IR, up to 150m (492 ft) IR distance
• IP66 ingress protection

Camera
Sensor1/2.8", 2.0 megapixel, progressive scan, CMOS
Min. IlluminationColour: 0.001 Lux (F1.5, AGC ON)
0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto, 1 ~ 1/100000s
WDR120dB
S/N>52dB
Lens
Lens type4.5~ 148.5mm, AF automatic focusing and motorized zoom lens
Optical Zoom33
IrisAutol; F1.5 ~ F4.0
Angle of View (H)56.23° ~ 2.57°
Angle of View (V)33.46° ~ 1.44°
Angle of View (O)69.16° ~ 3.03°
DORI
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
4.572.9(239.3ft)29.2(95.7ft)14.6(47.9ft)7.3(23.9ft)
148.52187.9(7178.3ft)875.2(2871.3ft)437.6(1435.7ft)218.8(717.8ft)
Illuminator
IR RangeUp to 150m (492 ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame RateMain Stream: 2MP(1920*1080),Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps;
Video Bit Rate128 Kbps~16 Mbps
U-codeSupport
ROIUp to 8 areas
Video streamTriple streams
OSDUp to 8 OSDs
Privacy Mask24 areas, up to 4 areas per scene
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLCSupport
BLCSupport
DefogDigital Defog
Events
Basic DetectionMotion detection, Audio detection, Tampering Alarm
Auto TrackingSupport
General FunctionWatermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711U,G.711A
Audio Bitrate64 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256 GB
Network StorageANR,NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API,SDK
User/HostUp to 32 users. 2 user levels: administrator and common user
SecurityPassword protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
ClientEZStation
EZLive
EZView
Web BrowserPlug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Pan & Tilt
Pan Range360° (endless)
Pan Speed2°/s ~ 75°/s
Preset speed: 180°/s
Tilt Range–15° ~ 90° (auto reverse)
Tilt Speed2°/s ~ 75°/s
Preset speed: 80°/s
Number of Presets1024
Preset Patrol16 patrols, up to 64 presets for each patrol
Route Patrol16 patrols, up to 32 actions for each patrol
Recorded Patrol16 patrols, up to 128 actions for each patrol
Patrol Stay Time15s~1800s
Preset Image FreezeSupport
Home PositionSupport
Interface
Audio I/O1/1
Alarm I/O2/1
Serial Port1 RS485
Built-in MicN/A
Built-in SpeakerN/A
WIFIN/A
Network1 * RJ45 10M/100M Base-TX Ethernet
Video OutputN/A
Certification
EMCFCC CFR 47 Part 15
EN 55032:2015
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3-2013
SafetyIEC 62368-1
EN 62368-1
UL 60950-1
EnvironmentCE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
General

Power

DC12V±10% , PoE+ (IEEE802.3 at)
Power consumption: Max 25W
Power InterfaceØ 5.5mm coaxial power plug
Dimensions (Ø x H)Ø220 x 370mm (Ø8.7” x 14.6”)
Weight3.4kg(7.48lb)
Working Environment-40?~65?(-40°F ~ 149°F) , Humidity: ?95% RH (non-condensing)
Storage Environment-40?~70?(-40°F ~ 158°F) , Humidity: ?95% RH (non-condensing)
Surge protection6KV
Reset buttonSupport
ProtectionIngress Protection: IP66
Vandal Resistant: N/A
