• Using CAT.5 network patch cords support power for the wireless AP/CPE and IP camera/PTZ
  • Networking standard: IEEE802.3af/at/bt
  • POE power light blinks to determine the power status of the receiving end, and each blink is 2.7 watts.
  • PoE Watchdog AI Function: Detection front-end PoE cameras and PD, Automatic detection, Automatic restart
  • Upload port automatic flip (Auto MDI / MDIX)
  • 6KV lightning protection,8KV surge protection, anti-reverse connection, over-current protection, over-voltage protection, over-temperature protection, Short circuit protection
  • The Max output power of the port is 60W, which is convenient for hi-power equipment
  • Zero configuration feature power supply is automatically supplied to the adaptive equipment

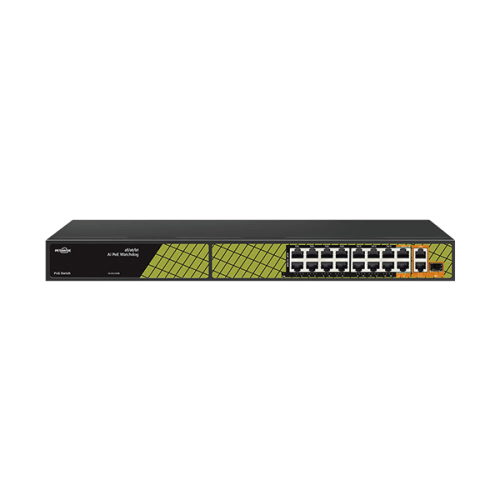

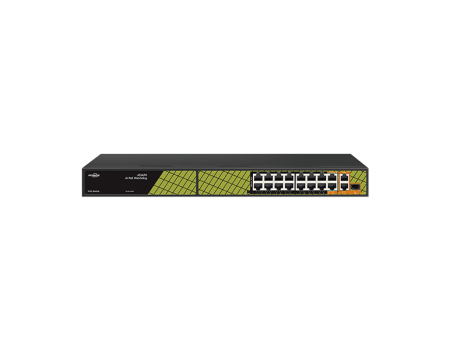

ModelPW2020-14T2G-IN
Ports14X10/100/100Mbps PoE ports (RJ45)

2X10/100/1000Mbps PoE ports (RJ45)

2X10/1000Mbps uplink port (RJ45)

1X10/1000Mbps SFP

Transmission Rate2000Mbps Full Duplex; 10 or 100 or 1000Mbps Half Duplex
Transmission Distance0-100m
Performance

Specification

Bandwidth: 12.80Gbps
Network Latency (10 to 1000Mbps): ?16?s (use the 64byte package size)
MAC address table: 8K
The Frame Filter & Transmission Rate: 14800pps the most for 10M port, 148800pps the most for 100M port,1488000pps the most for 1000M port
Networking

Standard

IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX/ IEEE 802.3ab 1000BASE-T
IEEE 802.3xFlowControl
IEEE 802.3af/at/bt Power over Ethernet
Power SupportPower input:  AC 110~220V Total?300W

PoE Watchdog: Port 1~16

Power output: PoE1~14Port:1/2(+52V),3/6(GND)?30W

PoE 15~16 Port:1245(+53V),3678(GND) compatible1/2(+52V),3/6(GND)?60W

Protection LevelLightning Protection:6KV, Per: IEC61000-4-5

ESD Protection:8KV, Per: IEC61000-4-2

Physical SpecificationsSize(L*W*H): 430mm*180mm*45mm
Working

Environment



Operating Temperature: -10? ~55? ( -14°~131?)
Storage Temperature: -40? ~70? ( -104°~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Electromagnetic CompatibilityCE mark
FCCPart15?Class B
VCCI ClassBEN55022 (CISPR 22)
C-Tick
WarrantyWhole machine: 1 year
Package ContentInstallation Manual
