Data Sheet

Code du produit:

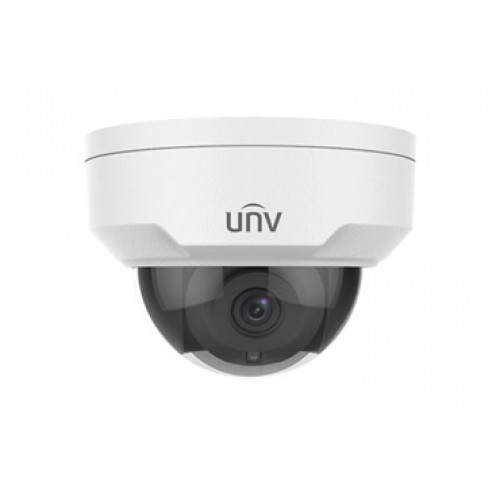

IPC322SR3-DVPF40

Résumé:

2MP, 1920x1080, @30fps, Ultra265, 120dB WDR, IR, up to 30m (98ft), Audio, Alarm, MicroSD slot, IP67, IK10, 4mm Lens, Fixed, DC12V

Optics

  • Day/night functionality
  • Smart IR, up to 30m (98ft) IR distance
  • Car-grade LEDs, brighter and uniform light compensation
  • Up to 120 dB WDR (Wide Dynamic Range)
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265,H.264, MJPEG
  • Triple streams
  • ROI (Region of Interest)
  • Customized OSD

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide input voltage range of ±25%
  • IK10 vandal resistant
  • 3-Axis
  • IP67


IPC322SR3-DVPF40
Camera
Sensor1/2.8?, 2.0 megapixel, progressive scan, CMOS
Lens4.0mm@F1.6
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)




4.06024126
Angle of View (H)86.5°
Angle of View (V)44.1°
Angle of View (O)106.4°
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 75°Rotate: 0° ~ 360°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour: 0.003Lux (F2.0, AGC ON)
0Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
S/N>52 dB
IR RangeUp to 30m (98ft) IR range
wavelength850nm
IR On/Off ControlAuto/Manual
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate128 Kbps~16 Mbps
9:16 Corridor ModeSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
DewarpingNA
HLCSupport
BLCSupport
Audio
Audio CompressionG.711
Two-way audioSupported
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256GB
Network StorageANR, NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
ClientEZStation
EZView
EZLive
Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Audio I/OInput: impedance 35k?; amplitude 2V [p-p]
Output: impedance 600?; amplitude 2V [p-p]
Alarm I/O1/1
Network1 RJ45 10M/100M Base-TX Ethernet
Certifications
CertificationsCE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4W
Dimensions (Ø x H)?108.5 x 81mm (Ø4.28” x 3.2”)
Net Weight0.45kg (0.99lb)
MaterialMetal + Plastic
Working Environment-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ?95% RH (non-condensing)
Strorage Environment-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ?95% RH (non-condensing)
surge protection2KV
Ingress ProtectionIP67
Vandal ResistantIK10
