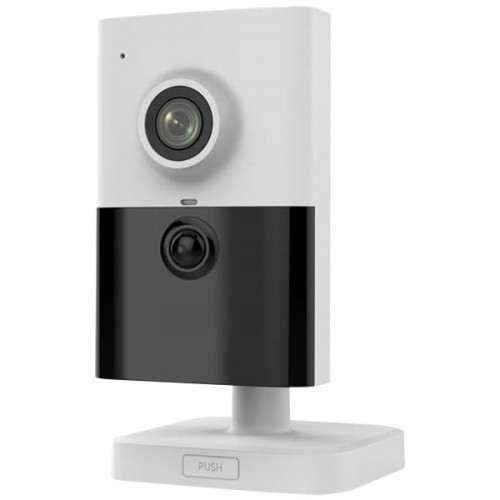

4MP Matrix IR Fixed Cube Network Camera
4MP Matrix IR Fixed Cube Network Camera
   0 commentaires  |  Ajouter un commentaire
Data Sheet

Code du produit:

NV444FW

Résumé:

IP-P 4MP WiFi 2.8mm MatrixIR H265 PIR MSDSlot Mic/Speaker

Connectez-vous pour le prix
Camera
Image Sensor  1/3" Progressive Scan CMOS
Min. Illumination Color: 0.018 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Day & Night IR cut filter
Digital Noise Reduction 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment  Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Compression Standard
Video Compression

Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264
H.264 codec profile Main Profile/High Profile
Bit Rate 256 Kbps to 16 Mbps
Audio compression G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio bit rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Max. Resolution 2688 × 1520
Main Stream

50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080)

60Hz: 30fps (2688 × 1520, 2304 × 1296, 1920 × 1080)

Sub-Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream


50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection
Face Detection Yes
Region of Interest

Support 1 fixed region for main stream and sub-stream separately
