Data Sheet

Code du produit:

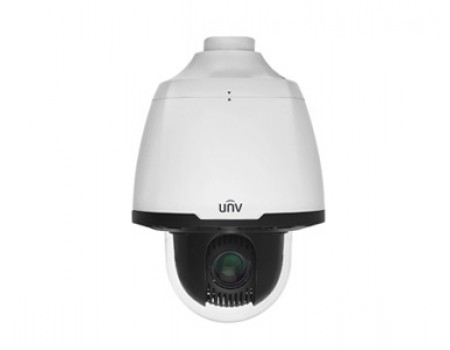

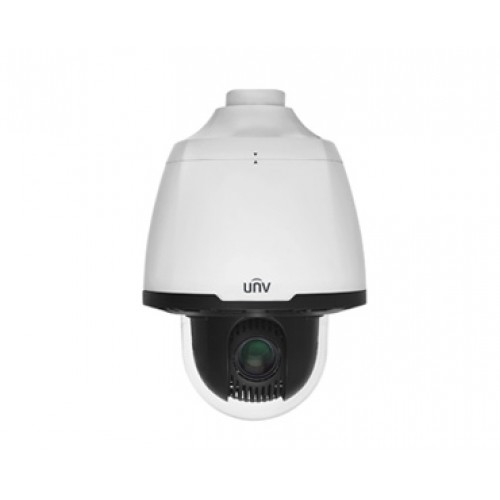

IPC642E-X22-IN

Résumé:

1/2.8 CMOS, ICR, 1920x1080: 30fps, H.264/MJPEG, flux triples, AC24V, 3D DNR, fente pour carte SD, entrée/sortie 2 d'alarme, entrée/sortie audio, sortie BNC, -40 à 70 °, IP67, zoom optique 22x (4,7 ~ 103,4 mm)

Optique

*  Mise au point précise et rapide

*  Surveillance Lowlight

Compression

*  H.264 High Profile

*  Triple flux

*  OSD personnalisé

Réseau

*  Interfaces réseau facultatives avec Ethernet RJ45 et SFP optique

*  Conformité ONVIF

Structure

*  Conception de structure d'installation rapide

*  Technologie intelligente de contrôle de la température

*  Structure d'étanchéité de haute qualité, soutien IP66

*  Protection contre les surtensions de 6 kV conçue pour l'interface réseau

CameraIPC642E-X22-IN
Sensor1/2.8", 2 megapixel, progressive scan, low illumination CMOS
Lens4.7 ~ 103 mm (22x optical zoom)
Angle of View (H)61.9° (wide) ~ 3.4° (tele)
IrisAuto/Manual; F1.6 ~ F3.2
ShutterAuto/Manual; shutter time: 1/6 s ~ 1/8000 s
Minimum IlluminationColour: 0.03 lux (F1.6, 50IRE) B/W: 0.01 lux (F1.6, 50IRE)
S/N>52dB
Day/NightIR-cut filter with auto switch (ICR)
Video
Max. Resolution1920 × 1080
Video CompressionH.264,MJPEG
Frame Rate1080P (1920*1080) 30 fps; 720P (1280*720) 30 fps; D1 (720*576) 25 fps
Video StreamingTriple
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
Digital ZoomSupported
Audio
Audio CompressionG.711
Two-way audioSupported
Storage
Edge StorageSD, up to 64 GB
Network
ProtocolsL2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP, NTP,FTP,HTTP,SNMP,SIP
Compatible IntegrationONVIF, IMOS,API
Pan & Tilt
Pan Range360° (endless)
Pan Speed0.1°/s ~ 400°/s
Pan preset speed: 540°/s
Tilt Range–1° ~ +90° (auto reverse)
Tilt Speed0.1° ~ 240°/s
Tilt preset speed: 400°/s
Number of Preset255
PatrolUp to 16 patrols, up to 32 presets per patrol Note: The total number of patrols and patterns is 16.
PatternUp to 16 patterns, with the total recording time not less 15 minutes
Interface
Audio I/O3.5 mm audio interface
Input: impedance 35 k?; amplitude 2 V [p-p]
Output: impedance 600; amplitude 2 V [p-p]
Alarm I/O2 / 1
Serial Port1 RS485
Network10M/100M Base-TX Ethernet
Video Output1 BNC, impedance 75; amplitude 1 V [p-p]
General
Power24 V AC, 24 V DC
Power consumption: 9 ~ 33 W (heater: Max. 20 W)
Dimensions (Ø x H)Ø218 x 298 mm (Ø8.6” x 11.7”)
Weight4.2 kg (9.3 lb)
Working Environment–40°C ~ +70°C (-40°F ~ 158°F), Humidity ? 90% RH(non-condensing)
Ingress ProtectionIP67
