Data Sheet

Code du produit:

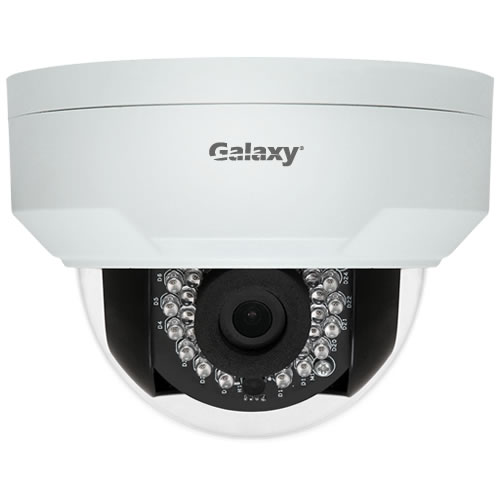

GX744MFS-IR28

Résumé:

1/3 " CMOS, ICR, 2592x1520 @ 20fps, 120dB WDR, H.265, triple flux, IR jusqu'à 98ft (30m), fonctions intelligentes, alarme, audio, fente pour carte micro SD, IP66, IK10, 3 axes, objectif fixe de 2,8 mm , DC12V/PoE

  • Day/night functionality
  • Smart IR, up to 30 m (98 ft) IR distance
  • Up to 120 dB WDR (Wide Dynamic Range)
  • 3D DNR (Digital Noise Reduction)
  • H.265, H.264, MJPEG
  • Embedded smart algorithm
  • ROI (Region of Interest)
  • Customized OSD
  • ONVIF Conformance
  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide input voltage range of +/-25%
  • IK10 vandal resistant
  • IP66
Camera
Sensor 1/3", 4 megapixel, progressive scan CMOS
Lens 2.8 mm@F2.0
Angle of View (H) 101.8deg.
Shutter Auto/Manual, 1/6~1/100000 s
Min. Illumination Colour: 0.02 Lux (F2.0, AGC ON) 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
S/N >55 dB
WDR 120 dB
Video
Max. Resolution 2592 x 1520
Video Compression H.265, H.264, MJPEG
Frame Rate 4MP (2592x1520): Max. 20 fps; 4MP (2560x1440): Max. 25 fps 3MP (2048x1520): Max. 30 fps; 1080P (1920x1080): Max. 30 fps
Video Streaming Triple
9:16 Corridor Mode Supported
ROI Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
Smart
Behavior Detection Intrusion, crossing line, motion detection
Exception Detection Audio detection
Intelligent Identification Face detection
Statistical Analysis People counting
Audio
Audio Compression G.711
Two-way audio Supported
Storage
Edge Storage Micro SD, up to 128 GB
Network
Protocols L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
Compatible Integration ONVIF, API
Interface
Audio I/O Input: impedance 35 kohm; amplitude 2 V [p-p]
Output: impedance 600 ohm; amplitude 2 V [p-p]
Alarm I/O 1/ 1
Network 10M/100M Base-TX Ethernet
General
Power 12 V DC, or PoE (IEEE802.3 af)
Power consumption: Max 5.5W
Dimensions (Dia. x H) Dia.108.5 x 81 mm (Dia.4.28" x 3.2")
Weight 0.45 kg (0.99 lb)
Working Environment -35°C ~ +60°C (-31°F ~ 140°F), Humidity
Ingress Protection IP66
Vandal Resistant IK10

Junction Box

GX-BK-JB82X


Wall Mount

GX-BK-WM02D
