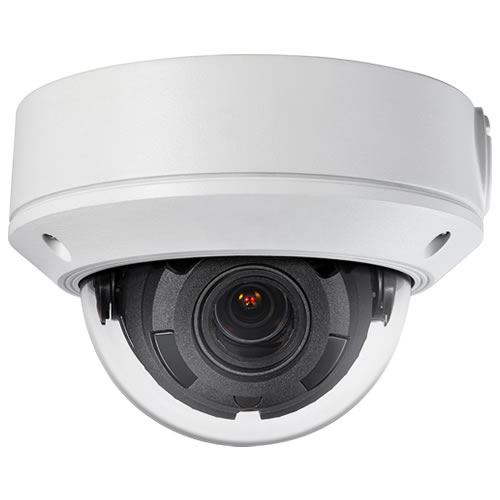

Data Sheet

Code du produit:

NV7043W-MZ

Résumé:

4MP, 2560x1440 @ 20fps, H.265 +, 120dB WDR, jour et nuit (ICR), IR matricielle jusqu'à 100ft (33m), IP67, IK10, objectif motorisé de 2,8 à 12mm VF, DC12V, PoE

  • 4MP haute définition
  • Jusqu'à 2560x1440 @ 20fps
  • Lentille motorisée de 2.8-12mm Varifocal
  • IR Range jusqu'à 100 pieds
  • H.265 +, H.265, H.264, H.264 Zip + Prêt
  • Vrai WDR 120dB
  • IP67, IK10
  • DC 12V, PoE
  • Boîtier métallique

Junction Box

DS-1280ZJ-DM21


Wall Mount

DS-1273ZJ-135


Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 .018Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm to 12mmHorizontal view: 98deg. to 28deg.,Vertical view: 51deg. to 16deg.,Diagonal view: 115deg. to 32deg.
Lens Mount Dia.14
Day & Night IR cut filter
DNR 3D DNR
Wide Dynamic Range True WDR 120dB
Angle Adjustment Pan: 0deg. to 355deg., tilt: 0deg.to 70deg., rotation: 0deg. to 360deg.
Compression Standard
Video Compression Main stream: H.2 65/H.264Sub stream: H.265/H.2 64/MJPEG
H.264 / H.264+Type Baseline Profile/ Main Profile/ High Profile
H.265 / H.265+ Type Main Profile / Main Stream Support
Video Bit Rate 32 Kbps ~ 8 Mbps
Max. Resolution 2560 x 1440
Main Stream 50Hz: 20fps (2560 x 1440, 1920 x 1080, 1280 x 720)60Hz: 20fps (2560 x 1440, 1920 x 1080, 1280 x 720)
Sub Stream 50Hz: 20fps (704 x 576, 352 x 288, 640 x 480, 320 x 240)60Hz: 20fps (704 x 480, 352 x 240, 640 x 480, 320 x 240)
Image Enhancement BLC/ 3D DNR
Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Network
Network Storage NAS (NFS,SMB/CIFS)
Alarm Trigger Motion detection, video tampering alarm, illegal login
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Standard ONVIF(PROFILE S,PROFILE G),ISAPI
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Reset Built-in microSD/SDHC/SDXC slot, up to 128 GB
General
Working Temperature
/Humidity
-22 °F ~+122 °F(-30 °C ~ +50 °C)Humidity 95% or less (non-condensing)
Power Supply DC 12V +/- 25%
Power Consumption Max. 5W12 VDC +/- 25%,
IR Range Up to 100ft
Weather Proof Ratings IP67
Impact Protection IK10
Dimensions Dia. 5.6" x 3.9" (Dia. 141 x 99.6 mm)
Weight 1.8lb. (820 g)

...
