Data Sheet

Code du produit:

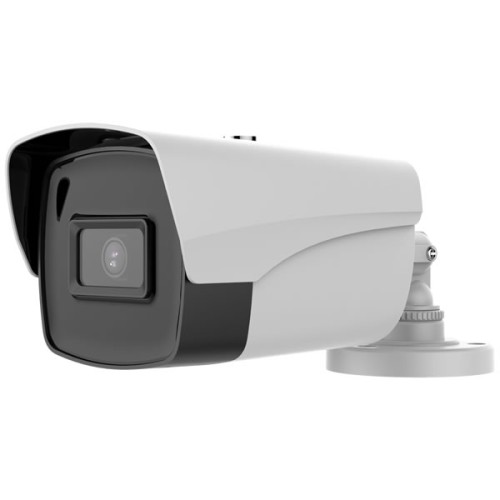

AC326-FB4

Résumé:

5MP, 2560 × 1944@30fps, TVI/CVI/CVBS,WDR, H.265+, 0.01 Lux@F1.2, Day & Night (ICR), IR up to (40m), 2.8mm Fixed Lens, DC12V/PoE, IP67

  • High quality imaging with 5 MP, 2560 × 1944 resolution
  • 2.8 mm, 3.6 mm, 6 mm, 8mm, 12mm fixed focal lens
  • Up to 40 m IR distance for bright night imaging
  • One port for four switchable signals (TVI/AHD/CVI/CVBS)
  • Water and dust resistant (IP67)

Camera

Image Sensor

5 MP CMOS

Signal System

PAL/NTSC



Frame Rate

TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps AHD: 5M@20fps, 4M@30fps, 4M@25fps

CVI: 4M@30fps, 4M@25fps

CVBS: PAL/NTSC

Resolution

2560 (H) × 1944 (V)

Min. illumination

0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s

Lens

2.8 mm, 3.6 mm fixed lens

Horizontal Field of View

2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°

3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°

Lens Mount

M12

Day & Night

ICR

WDR (Wide Dynamic Range)

Digital WDR

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°

Menu

Image Mode

STD/HIGH-SAT

AGC

Support

Day/Night Mode

Auto/Color/BW (Black and White)

White Balance

Auto/Manual

AE (Auto Exposure) Mode

DWDR/BLC/HLC/Global

Language

English

Functions

Brightness, Sharpness, Mirror, Smart IR

2D DNR

Yes

Interface

Video Output

TVI/AHD/CVI/CVBS

General

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Power Supply

12 VDC ± 25%

Power Consumption

Max. 4.3 W

Protection Level

IP67

Material

Front Cover: Metal

Main Body: Plastic

IR Range

Up to 40 m

Communication

HIKVISION-C

Dimensions

78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53")

Weight

Approx. 330 g (0.73 lb.)
