Data Sheet

Code du produit:

TVI1752W-28CF

Résumé:

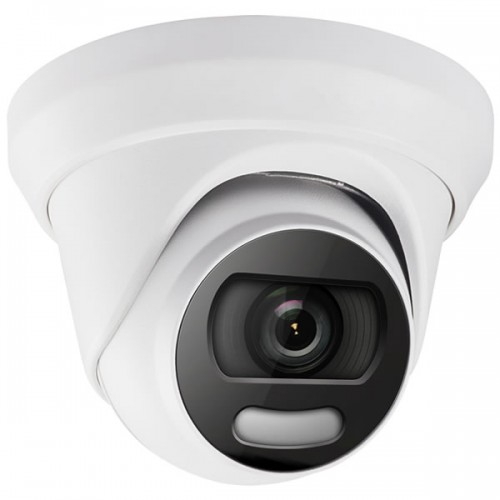

Galaxy Platinum 5MP 4in1 Color Day & Night Turret Fixed Lens Camera / Full time color / 2.8mm Lens / White light up to 65ft / OSD True WDR / IP67 / UTC-C / Junction Box: DS-1230ZJ (Optional)

Camera

Image Sensor

5 MP CMOS

Resolution

2560 (H) × 1944 (V)



Frame Rate

5MP@20fps

Min. illumination

0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter Time

PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Slow Shutter

Max. 16 times

Lens

2.8 mm fixed lens

Field of View

2.8 mm, horizontal FOV: 104°, vertical FOV: 54°, diagonal FOV: 126°

Lens Mount

M16

Day & Night

Color

WDR (Wide Dynamic Range)

120 dB

Angle Adjustment

Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°

Menu

Image Mode

STD/HIGH SAT

AGC

Yes

White Balance

Auto/Manual

HLC

Yes

BLC (Backlight Compensation)

Yes

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable areas

WDR

Yes

Functions

Brightness, Sharpness, 3D DNR, Mirror, Smart light

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)



Power Supply

12 VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.

Power Consumption

Max. 3 W

Protection Level

IP67



Material

Main Body: Metal Mounting Base: Plastic

White Light

Up to 66ft(20 m)

Dimensions

Ø 109.82 mm × 85.56 mm ( Ø 4.32" × 3.37")

Weight

Approx. 336 g (0.74 lb.)




  • 5 MP, 2560 × 1944 resolution
  • 24-hour color image
  • 130 dB true WDR, 3D DNR
  • 3.6 mm, 6 mm fixed focal lens
  • Smart Light, up to 20 m white light distance
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67

Junction Box

DS-1230ZJ


Wall Mount

DS-1273ZJ-130TRL
