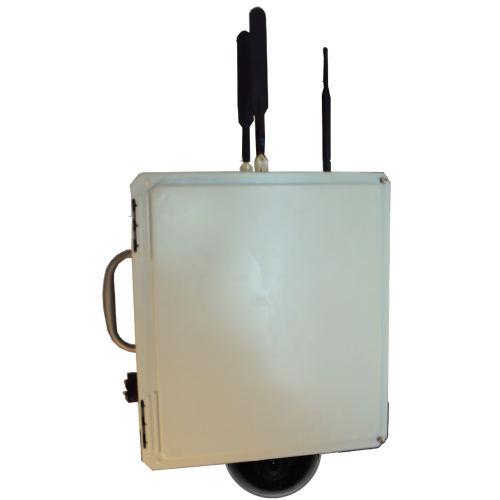

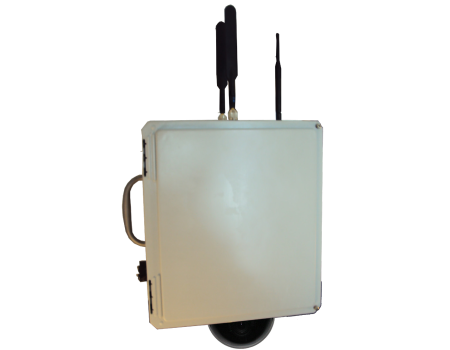

Portable, Outdoor HD Video Surveillance System GX-RD-PTZ-HD30
Portable, Outdoor HD Video Surveillance System GX-RD-PTZ-HD30
   0 commentaires  |  Ajouter un commentaire
Data Sheet

Code du produit:

GX-RD-PTZ-HD30

Résumé:

CAT5 and 4G cellular IP connectivity, 1080p HD video, Integrated battery backup, Switchable power options, Real-time remote monitoring, Day/Night switching for almost any lighting condition

Connectez-vous pour le prix
  • 1080p high-definition broadcast quality image for detailed post event analysis
  • Always-on wireless IP connectivity
  • Day/night switching provides for black and white video under very dark conditions
  • High speed pan/tilt provides 400 degree rotation in under 1 second

Imager

1/2.8” Progressive Scan CMOS

Shutter

1 to 1/10,000 Seconds

Minimum Illumination

0.05 Lux (Color); 0.01 Lux (B/W)

Image Features

Auto Exposure, Auto, Indoor, Outdoor, Manual White Balance, Auto and Manual Iris, Auto and Manual IR-Cut Filter, Back Light Compensation

Focus

Auto and Manual

Zoom Ratio

20x Optical Zoom

View Angle

6.2° - 68°

Focal Length

4.7 – 94 mm

F-number

1.8 - 2.2

Pan Angle

360°

Pan Speed

400° Per Second

Tilt Angle

-10° to 190°

Tilt Speed

400° Per Second

Network

10/100 BASE-T (RJ-45),

4G cellular

I/O Terminals

4 Inputs, 2 Outputs

On-board Memory

SD card slot (64GB)

Resolution

1920 x 1080

Compression

M-JPEG, H.264

Frame Rate

30 FPS

Protocols

TCP/IP, HTTP, FTP, SMTP

Weight

19 lbs.

Voltage Required

110 VAC, 12 VDC, 48 VDC

(switch selectable)

Power Consumption

25 W (100 W max. w/heaters)

Operating Temperature

-29° to 50° C

Dimensions

19.2” H x 13.2” W x 7” D

Mount

Rapid Deploy
