Data Sheet

Product Code:

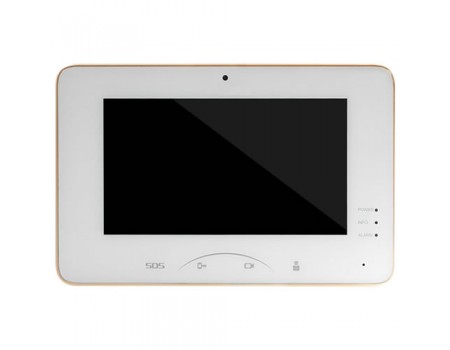

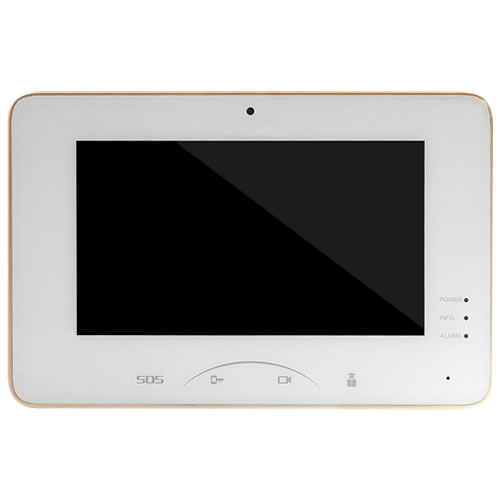

VDP-KH8301-WT

Summary:

7-inch FTF Color LCD with 1024 x 600 Resolution, Capacitive Touch Screen, 8-ch Alarm Input Sensors, Uploads Alarms to Master Station, Client, or App, Noise Suppression and Echo Cancellation, Monitors Door Stations and External Cameras, Remote Door Unlocking via Client or App, High-Performance SOC Processor, MicroSD Card Support

  • 7-inch FTF Color LCD with 1024 x 600 Resolution
  • Capacitive Touch Screen
  • 8-ch Alarm Input Sensors
  • Uploads Alarms to Master Station, Client, or App
  • Noise Suppression and Echo Cancellation
  • Monitors Door Stations and External Cameras
  • Remote Door Unlocking via Client or App
  • High-Performance SOC Processor
  • MicroSD Card Support


System Parameters
Processor: High-Performance Embedded SOC Processor
Operation System: Embedded Linux Operation System
Memory: 256M
Display Parameters
Display Screen: 7-Inch Colorful TFT LCD
Display Resolution: 1024 × 600
Operation Method: Capacitive Touch Screen, Touch Key
Operation interface: Flattened UI Operation Interface
Video Parameters
Camera: CMOS 0.3 MP, Mechanical Switch
Video Compression Standard: H.264
Resolution: 1024 x 600
Video frame rate: PAL: 25 fps, NTSC: 30 fps
Audio Parameters
Audio Input: Built-in Omnidirectional Microphone
Audio Output: Built-in Loudspeaker
Audio Compression Standard: G.711 U
Audio Compression Rate: 64 Kbps
Audio Quality: Noise Suppression and Echo Cancellation
Network Parameters
Ethernet: 10/100 Mbps Self-Adaptive Ethernet
Network Protocol: TCP/IP, RTSP
Alarm Parameters
Alarm Input: 8-ch Alarm Input Sensor
Device Interfaces
Network Interface: 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
RS-485: 1 RS-485 Half-Duplex Port
I/O Output: 2
TF Card (micro SD card): TF Card, Support Max. 32GB
General
Power Supply: 12 VDC/24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612)
Power Consumption: 10 W
Certification: FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Working Temperature: -10° C to + 55° C (14° F to 131° F)
Working Humidity: 10% to 90%
Dimensions(L × W × H): 217 mm × 142 mm × 26 mm (8.5" × 5.6" × 1.0")
