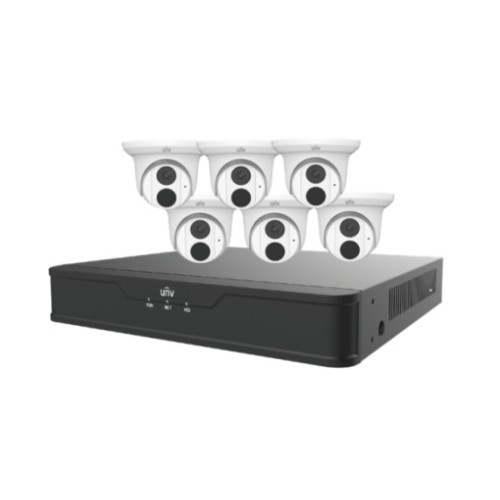

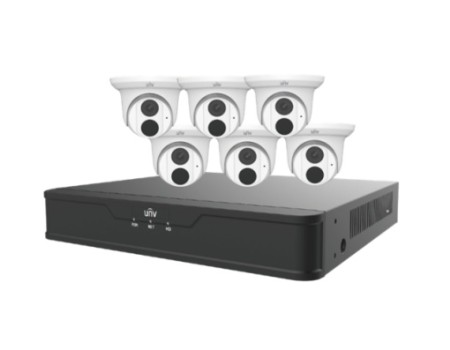

UNV NDAA 8CH 6X 4MP Dual Light Full Color Turret AI(Human & Vehicle) Kit

Model

NVR301-08S3-P8

Video/Audio Input

IP Video Input

8-ch

Network

Incoming Bandwidth

64Mbps

Outgoing Bandwidth

48Mbps

Remote Users

128

Protocols

TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP

Video/Audio Output

HDMI/VGA Output

HDMI:

3840x2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz,

1280x720/60Hz, 1024x768/60Hz VGA:

1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz,

1024x768/60Hz

Recording Resolution

4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

1-ch, RCA

Audio Compression

G.711A, G.711U

Synchronous Playback

8-ch

Corridor Mode Screen

3/4/5/7/9

Decoding

Decoding format

Ultra 265/H.265/H.264

Liveview/Playback

4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

1 x 4k@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30

Hard Disk

SATA

1 SATA interface

Capacity

up to 8TB for each disk

Smart

VCA Detection by Camera

Face detection, Intrusion detection, Cross line detection, Audio detection, Enter Area, Leave Area

VCA Search

Face Search, Behavior Search

External Interface

Network Interface

1 RJ-45 10M/100Mself-adaptive Ethernet Interface

USB Interface

Rear panel: 2 x USB2.0

PoE

Interface

8 RJ45 10M/100M self-adaptive Ethernet Interface

Max Power

Max 30W for single port Max 75W in total

Supported Standard

IEEE 802.3at, IEEE 802.3af

General

Power Supply

52V DC

Power Consumption: </=9 W (without HDD)

Working Environment

-10°C ~ + 55°C (+14°F ~ +131°F), Humidity </= 90% RH (non-condensing)

Dimensions (W×D×H)

260mm ×240mm × 46 mm (10.2" × 9.4" ×1.8")

Weight (without HDD)

</=1.1kg (2.43lb)

Model

EC-T4F28M-DL

Camera

Resolution

4MP

Sensor

1/3.0" CMOS

Min. Illumination

Color: 0.01 lux ( F1.6, AGC ON)

0 lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

Adjustment angle

Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°

S/N

>52dB

WDR

DWDR

Lens

Lens type

2.8mm

Iris Type

Fixed

Iris

F1.6

Field of View (H)

97.0°

Field of View (V)

52.2°

Field of View (D)

107.5°

DORI

DORI Distance(Lens)

2.8mm

DORI Distance(Detect)

63.0m(206.7t)

DORI Distance(Observe)

25.2m(82.7ft)

DORI Distance(Recognize)

12.6m(41.3ft)

DORI Distance(Identify)

6.3m(20.7ft)

Illuminator

Illumination Distance(IR)

30m

Illumination Distance(Warm Light)

30m

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265; H.265; H.264; MJPEG

H.264 code profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080),

Max 30fps; 720P (1280*720), Max 30fps

Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate

128 Kbps~6144 Kbps

U-code

Support

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Video stream

Dual streams


White Balance

Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise

Dewarping

N/A

HLC

Support

BLC

Support

Defog

Digital Defog

Events

Behavior Detection

Cross line, intrusion(based on human body detection), Motion detection, tampering alarm

General Function

Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP authentication

Audio

Audio Compression

G.711U; G.711A

Audio Bitrate

64 Kbps

Two-way Audio

N/A

Suppression

Support

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 128 GB

Network Storage

ANR; NAS(NFS)

Network

Protocols

IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; SNMP

Compatible Integration

ONVIF (Profile S, Profile G, Profile T); API; SDK

User/Host

Up to 32 users, 2 user levels: administrator and common user

Security

Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF

Client

UNV-Link;   UNV-Link Pro; EZStation

Web Browser

Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Audio I/O

N/A

Alarm I/O

N/A

Serial Port

N/A

Built-in Mic

Support

Built-in Speaker

N/A

WIFI

N/A

Network

1 * RJ45 10M/100M Base-TX Ethernet

Video Output

N/A

Certification

EMC

CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B)

Safety

CE LVD (EN 62368-1)

UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

Environment

CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);

Protection

IP67 (IEC 60529)

General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 2.8W

Power Interface

5.5mm coaxial power plug

Dimensions

118 x 98mm (4.6” x 3.9”)

Weight

0.29kg (0.64lb)

Material

Metal + Plastic

Working Environment

-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: </=95% RH (non-condensing)

Storage Environment

-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: </=95% RH (non-condensing)

Surge protection

4KV

Reset button

N/A
