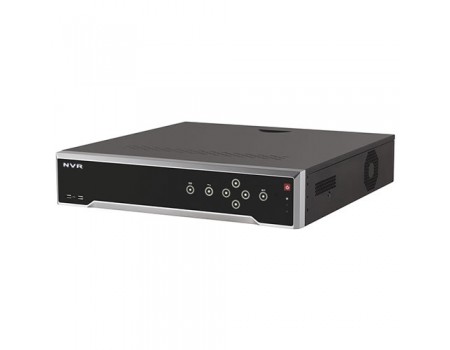

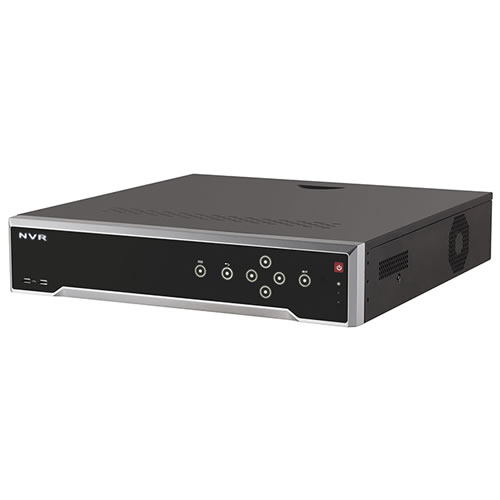

Galaxy Prestige 16CH 4K Ultra HD 1080P Standalone NVR w/16PoE
Galaxy Prestige 16CH 4K Ultra HD 1080P Standalone NVR w/16PoE
   0 reviews  |  Write a review
Data Sheet

Product Code:

NVR7416-I4/P16

Summary:

16CH 12MP NVR, 4-ch @ 4K(8MP), 8-ch @ 4MP, 16-ch @ 1080P, H.265/H.264/H.264+, HDMI, Audio 1in/1out, Alarm 16in/4out, 4 SATA up to 6TB/ea, 2 USB2.0, 1 USB3.0, 1 RJ-45 10/100/1000Mbps, 16 PoE, AC100~240V, 1.5U Case, Multiple network monitoring

Login for price
  • Up to 16 channel 1080p IP camera input
  • Dual-OS design to ensure high reliability of system running
  • H.265/H.264/H.264+/MPEG4 Video formats
  • Max 256Mbps incoming bandwidth
  • 16 channel synchronous realtime playback
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
  • 3D intelligent positioning with PTZ camera
  • HDMI Video output at up to 4K (3840 x 2160) resolution
  • Support 4 SATA HDDs up to 16TB, 3 USB
  • Support IPC UPnP, 16PoE ports

Model NVR7416-I4/P16
System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
System Resourcs Pentaplex function: live, recording, playback, backup & remote access
Control Mode USB mouse, IR remote control, Network
Video & Audio
IP Camera Input 16 channel
IP Camera Supported List DH series, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc
Two-way Talk 1channel Input, 1channel Output, RCA
Display
Interface 1 HDMI,1 VGA,1 TV
Resolution HDMI:4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz,1600 x 1200/60Hz; HDMI & VGA:1920 x 1080p/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Display Split 1/4/8/9/16
Tour Display Support
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Privacy masking 4 self-defined four-sided zones for privacy masking for each camera
Recording
Compression H.265/H.264+/H.264/MPEG4
Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Max Encoding Speed --
Recording Bit Rate --
Recording Quality CBR, VBR(1~6 level, level 6 is the best)
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Priority Manual>Alarm>MD>Regular
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips
Motion Detection Motion Detection, MD Zones: 396(22x18)
Video Loss & Camera Blank Support
Alarm Input 16 channel
Relay Output 4 channel
Playback & Backup
Sync Playback 1/4/8/16
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network/Internal SATA burner
Network
Ethernet 1 RJ-45 port (10/100/1000Mbps)
PoE 16 ports (IEEE802.3at/af)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access 128users
Remote Operation Monitor, PTZ control, Playback, System setting, File download, Log information
Storage
Hard Disk 4 SATA interfaces for 4HDDs ,Up to 6TB capacity for each HDD
HDD Management --
Auxiliary Interface
USB Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0
RS232 1 port, For PC communication & Keyboard
RS485 1 port, For PTZ control
General
Power Supply AC 100V~240VAC,50/60HZ
Power Consumption 20W (without HDD, without enabling PoE)
Working Environment -10°C ~+55°C(14°F ~ 131°F) / 10%~90%RH
Dimension
(WxDxH)		 1.5U, 440mmx407mmx70mm
Weight 5KG(11 lb)(without HDD)
