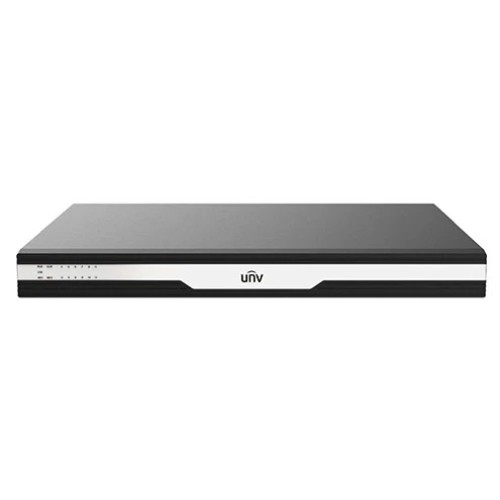

UNV High Definition Video Decoder
UNV High Definition Video Decoder
   0 reviews  |  Write a review
Data Sheet

Product Code:

ADU8706-E-V3

Login for price
  • Embedded Linux OS ensures 24/7 stable operation and prevents hackers and
  • HDMI video output
  • 4 HDMI
  • Maximum decoding resolution of 12MP, up to 16*1080P@30Hz decoding capability for each
  • Up to 4K@30Hz output resolution, compatible with mainstream display devices in the
  • Supports window opening, roaming and picture-in-picture. Up to 36 windows are allowed for each output
  • Supports
  • Supports virtual
  • Supports small pixel pitch
  • Supports turning on/off video wall
  • Supports standard 265, H.264, MPEG4, image compression formats.
  • Supports decoding audio in 711A and G.711U formats.
  • Self-developed decoding algorithm offers high decoding efficiency and clear
  • Allows to configure and manage the device on a central
  • Supports decoding SD and HD
  • Supports local and remote
  • Supports decoding streams of other manufacturers through onvif

Model

ADU8706-E-V3

ADU8709-E-V3

ADU8712-E-V3

Input

Input

4-ch HDMI (video only)











HDMI input resolution

4K interface：3840*2160(4K)@30Hz, 1920*1080(1080P)@60Hz, 1920*1080(1080P)@50Hz,

1920*1080(1080P)@30Hz, 1600*1200(UXGA)@60Hz, 1440*900(WXGA)@60Hz,

1280*1024(SXGA)@60Hz, 1280*720(720P)@60Hz, 1280*720(720P)@50Hz,

1024*768(XGA)@60Hz(4K interface：1, 2)

1080P interface：1920*1080(1080P)@60Hz, 1920*1080(1080P)@50Hz, 1920*1080（1080P） @30Hz, 1600*1200(UXGA)@60Hz, 1440*900(WXGA)@60Hz, 1280*1024(SXGA)@60Hz,

1280*720(720P)@60Hz, 1280*720(720P)@50Hz, 1024*768(XGA)@60Hz(1080P interface：3, 4)

Output

Output

6-ch HDMI

9-ch HDMI

12-ch HDMI









HDMI output resolution

4K interface：3840*2160(4K)@30Hz, 1920*1200(WUXGA)@60Hz, 1920*1080(1080P)@60Hz,

1600*1200(UXGA)@60Hz, 1440*900(WXGA+)@60Hz, 1280*1024(SXGA)@60Hz,

1280*720(720P)@60Hz, 1024*768(XGA)@60Hz(4K interface：1, 2, 4, 5, 7, 8, 10, 11)

1080P interface：1920*1200(WUXGA)@60Hz, 1920*1080(1080P)@60Hz,

1600*1200(UXGA)@60Hz, 1440*900(WXGA+)@60Hz, 1280*1024(SXGA)@60Hz,

1280*720(720P)@60Hz, 1024*768(XGA)@60Hz(1080P interface：3, 6, 9, 12)

Decoding

Decoding format

H.265, H.264, MPEG4







Decoding capability

8*12MP@20Hz

8*4K@30Hz

32*1080P@30Hz

72*720P@30Hz

12*12MP @20Hz

12*4K@30Hz

48*1080P@30Hz

108*720P@30Hz

16*12MP @20Hz

16*4K@30Hz

64*1080P@30Hz`

144*720P@30Hz

Splicing

M*N (the number of windows cannot exceed the number of output channels)

Windows

36* number of output channels

Interface



Audio input

1 * terminal audio input (reserved)

1 * 3.5mm audio input (reserved)



Audio output

1 * terminal audio output (reserved)

1 * 3.5mm audio output, dual channel

Alarm input

4 * terminal alarm input (reserved)

Alarm output

4 * terminal alarm output (reserved)

Serial port

1 * RS232, 1 * RS485

Ethernet

2 * GE port, RJ45 interface, half-duplex/full-duplex Ethernet, 10M/100M/1000M Base-T adaptive

USB

2 * USB3.0

General

Dimensions (W*H*D)(mm)

440 * 44 * 339

Weight (kg)

3.83

3.9

3.95

Max. power consumption (W)

32

40

50

Power supply

100V to 240V AC; 50Hz/60Hz

Operating temperature

-10°C to 55°C

Operating humidity

10% to 90% RH, non-condensing
