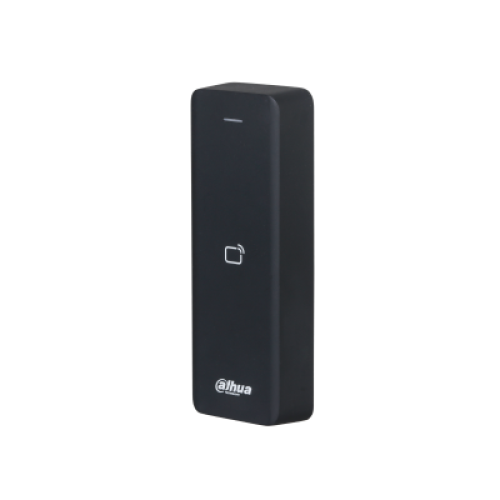

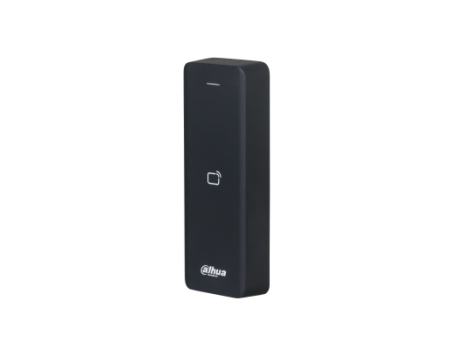

Galaxy Hunter Series Access Reader
> Card unlock.
> RS-485 and Wiegand 34 communication (Wiegand-26 can be customized).
> Prompts using the buzzer and indicator light.
> Tamper alarm.
> Watchdog monitors and controls the device when it behaves abnormally, performing recoveries when necessary to ensure the long- term operation of the device. > All the connection ports have overcurrent and overvoltage protection.
> IP66 rated.
|
System |
|
|
OSDP Protocol |
Yes |
|
Basic |
|
|
Product Type |
Card reader |
|
Buzzer |
Yes |
|
Casing Material |
PC + ABS |
|
Function |
|
|
Unlock Mode |
Card |
|
Card Type |
IC card |
|
Performance |
|
|
Response Time |
0.1 s |
|
Card Reading Distance |
0 cm–8cm (0"–3.15") |
|
Port |
|
|
RS-485 |
1 |
|
Wiegand |
1 channel output |
|
Alarm |
|
|
Tamper Alarm |
Yes |
|
General |
|
|
Power Supply |
12 VDC, 0.5 A |
|
Protection |
IP66 |
|
Power Consumption |
</= 0.48 W (standby), </= 1.2 W (working) |
|
Product Dimensions |
127 mm × 46 mm × 20 mm (5.00" × 1.81" × 0.79") |
|
Packaging Dimensions |
139 mm × 73 mm × 48 mm (5.47" × 2.87" × 1.89") |
|
Operating Temperature |
–30 °C to +70 °C (–22 °F to +158 °F) |
|
Operating Humidity |
</= 95% (RH) |
|
Operating Environment |
Outdoor |
|
Gross Weight |
104 g (0.23 lb) |
|
Installation |
Surface Mount |
