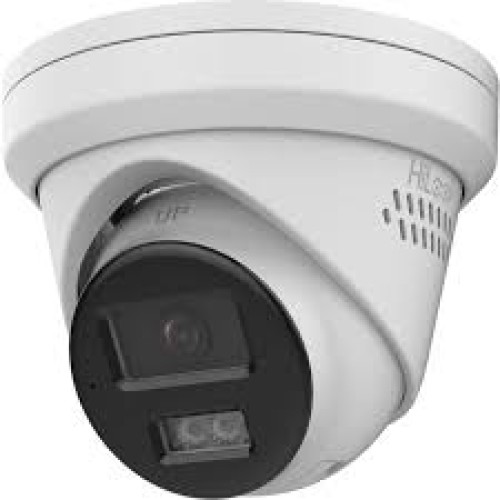

HiLook 8MP active deterrence IP turret Camera

Camera

Image Sensor

1/2.7" Progressive Scan CMOS

Max. Resolution

3840 × 2160

Min. Illumination

Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°

4 mm, horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108°

Lens Mount

M12

Iris Type

Fixed

Aperture

F2.0

DORI

DORI

2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m

4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m

Illuminator

Supplement Light Type

IR, White Light

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz:

12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR, VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream

Audio

Audio Type

Mono sound

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps

(MP2L2)/16 to 64 Kbps (AAC-LC)

Network

Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video

Interface, security audit log, host authentication (MAC address)

Simultaneous Live View

Up to 6 channels

API

Open Network Interface (Profile S, Profile T, Profile G), ISAPI, SDK

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS,

FTP, SMTP

User/Host

Up to 32 users

3 user levels: administrator, operator, and user

Client

iVMS-4200, HiLookVision

Web Browser

Plug-in required live view: IE 10, IE 11,

Local service: Chrome 80+, Firefox 80+, Edge 89+


Wide Dynamic Range (WDR)

120 dB

SNR

? 52 dB

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance,

adjustable by client software or web browser

Privacy Mask

4 programmable rectangle privacy masks

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Microphone

Yes, 1 built-in microphone

Built-in Speaker

Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.

Reset Key

Yes

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and

vehicle)), video tampering alarm, exception

Linkage

Upload to FTP/memory card, notify surveillance center, send email, trigger recording,

trigger capture, audible warning, flashing light

General

Power

12 VDC ± 25%, 0.66 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 9.5 W

Material

Metal & Plastic

Dimension

Ø127.3 mm × 96.3 mm (Ø5" × 3.8")

Package Dimension

150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

Weight

Approx. 590 g (1.3 lb.)

With Package Weight

Approx. 805 g (1.8 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating

Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Heartbeat, anti-banding, mirror, password protection, password reset via email

Flashing Light

Red and Blue Light

Approval

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7

Safety

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013
