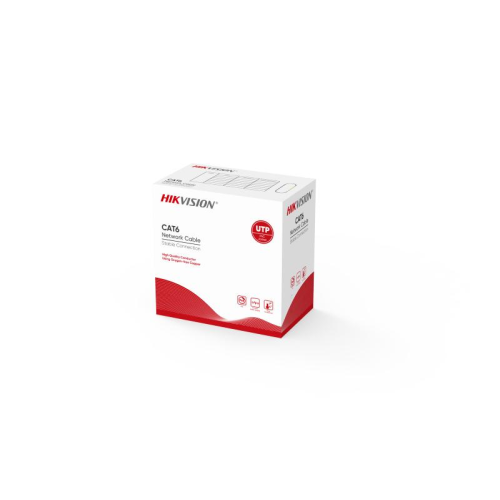

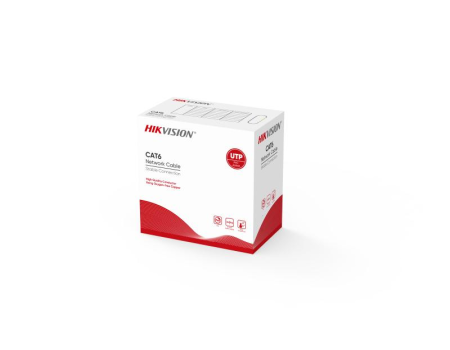

HIKVISION 305 m CAT6 UTP Network Cable (Solid Copper, 0.53 mm, CM)

Model

DS-1LN6-UE-W

Category

Cat.6

Reference standard

ISO/IEC11801, ANSI/TIA-568.2-D, RoHS 2.0, RCM

Fire resistance

CPR Eca,UL CM

Conductor

Material

Solid-Bare Copper (99.95%)

Diameter

0.530± 0.005 mm 24AWG

Insulation

Material

HDPE

Diameter

0.95 ± 0.05mm

Sheath

Thickness

0.55 ± 0.05 mm

Diameter

5.8 ± 0.50 mm

Material

PVC

Color

White,Blue

Rip-cord

Yes

Separator

Yes

Sheath physical properties

Before aging

Tensile strength 10.0 Mpa

Elongation 125%

Aging period

100°C × 24h × 10d

After aging

Tensile strength 8.0 Mpa

Elongation 100%

Cold bend

-20 ± 2°C × 4h, 8 × cable O.D, no visible cracks

Electrical

Characteristics (20°C)

1.0-250.0 MHz impedance

100 ± 15 OHM

1.0-250.0 MHz delay skew

</= 45 ns/100 m

DC resistance

</= 9.38 OHM/100 m

DC conductor resistance unbalance

</= 4.0%

Package dimension

305m: 400 mm (W) × 400 mm (H) × 240 mm (D)

Cable length

305 ± 1.5 m

Ambient temperature

-20°C to 75°C (-4°F to 167°F)

Operating voltage

57 V
