Data Sheet

Product Code:

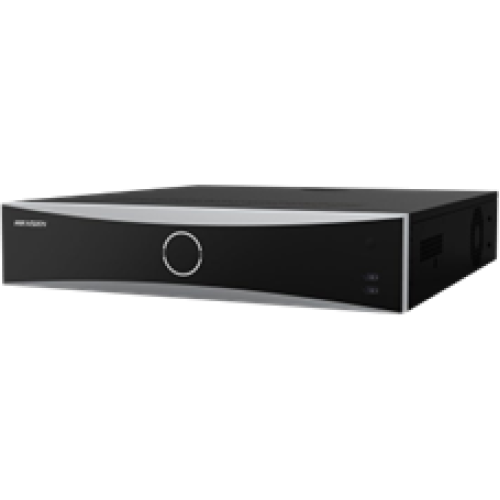

NR710-32S

Summary:

up to 32MP32CH IP up to 32MP (8192x3840), 320Mbps, 2x HDMI up to 4K, 2x VGA, H.265+/H.265, 20-ch@1080p (30 fps), People Counting, Audio 1in/1out, Alarm 16in/9out, 2x RJ45 10/100/1000M, 8x SATA up to 14TB/ea, 2xUSB2.0, 2xUSB3.0

  • H.265+/H.265/H.264+/H.264 video formats

  • Intelligent analytics based on deep learning algorithm

  • Up to 4-ch perimeter protection

  • Up to 4-ch facial recognition for video stream

  • Up to 8-ch facial recognition for face picture

  • Up to 32-ch IP camera inputs

  • Up to 32-ch 1080p decoding capability

Intelligent Analytics

AI by NVR

Facial recognition, perimeter protection, motion detection 2.0

AI by Camera

Facial recognition, perimeter protection, video structuralization, throwing objects from

building, motion detection 2.0, ANPR, people counting, VCA

Engine

1, engine mode is adjustable

Facial Recognition

Facial Detection and Analytics

Face picture comparison, human face capture, face picture search

Face Picture Library

Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture </=

512 KB, total capacity </= 1 GB)

Face Picture Comparison

(Captured from Camera)

8-ch

Facial Detection and Analytics

Performance

4-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)

Motion Detection 2.0

By NVR

All channels for Hikvision cameras

By Camera

All channels

Perimeter Protection



By NVR

4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;

Up to 12 rules in total

By Camera

All channels

ANPR

By Camera

All channels

Vehicle Attributes

Plate number, license plate color, license plate type

Plate Attributes

Vehicle brand, vehicle color, vehicle type

Video and Audio

IP Video Input

32-ch

Incoming Bandwidth

320 Mbps

Outgoing Bandwidth

256 Mbps

HDMI 1 Output

4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz

HDMI 2 Output

4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz

VGA 1 Output

1920 × 1080/60 Hz

VGA 2 Output

1920 × 1080/60 Hz

Video Output Mode

HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output,HDMI1/HDMI2

independent output

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Output

2-ch, RCA (Linear, 1 K?)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 K?)

Decoding

Decoding Format

H.265+/H.265/H.264+/H.264



Recording Resolution

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA

/4CIF/DCIF/2CIF/CIF/QCIF

*: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs.

Synchronous Playback

16-ch

Live View Window Division

1/2/4/6/8/9/16/25/32/36

Aux Port Window Division

1/2/4/6/8/9/16/25/32/36

Decoding Capability

Enable AI by NVR: 20-ch@1080p (30 fps)

Disable AI by NVR: 32-ch@1080p (30 fps)

Dual-Stream Recording

Support

Stream Type

Video, Video & Audio

Audio Compression

G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network

Network Interface

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Remote Connection

128

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP,

UPnP™, HTTP, HTTPS

API

ONVIF (profile S/G); SDK; ISAPI

Compatible Browser

IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

RAID

RAID Type

RAID0, RAID1, RAID5, RAID6, RAID10 Support global hot spare

Auxiliary Interface

Serial Interface

1 RS-485 (full-duplex), 1 RS-232

SATA

8 SATA interfaces

Capacity

Up to 14 TB capacity for each disk

eSATA

1 eSATA interface

Alarm In/Out

16/9

USB Interface

Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0

General





GUI Language

English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic,

Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew

Power Supply

100 to 240 VAC, 50 to 60 Hz

Consumption

</= 30 W (without HDD)

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Chassis

2U chassis

Dimension (W × D × H)

440 × 457 × 94 mm ( 17.4"× 18.0" × 3.7")

Weight

</= 7.1 kg (without HDD, 15.7 lb.)

Certification

Obtained Certification

CE, CB, REACH, WEEE, UKCA, LOA

CE

EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
