Data Sheet

Product Code:

IPC354SB-ADNF28K-I0

Summary:

4MP, 2688x1520@30fps, Ultra265, 120dB WDR, IR up to 30m (98ft), Built-in Mic, Audio, Alarm, MicroSD slot, 2.8mm Lens, Fixed, PoE, Optional: AE-TR-JB03-G-IN, TR-WM03-D-IN

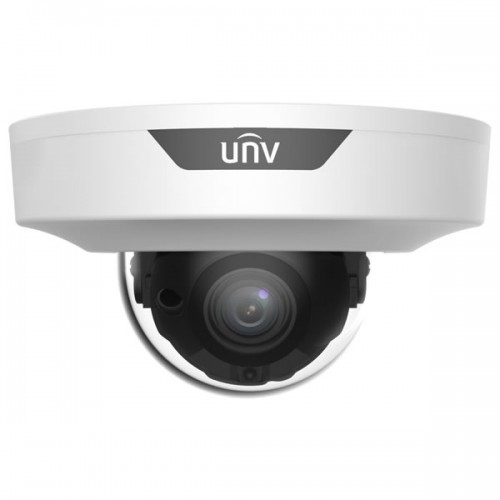

The IPC354SB-ADNF28K-I0 is a NDAA compliant security camera launched by Uniview UNV in 2022, this 4MP HD LightHunter Cable-free Network IR Fixed Dome Camera is an lightweight and easy-to-install camera. It has a 2.8mm fixed lens with LightHunter technology, the camera allows you to maintain a perfect view in areas up to 98 feet in total darkness. This dome security camera is ONVIF camera and support more other brands Onvif NVR.

  • High quality image with 4MP, 1/2.7"CMOS sensor
  • 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
  • Ultra 265, H.265, H.264, MJPEG
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic
  • Smart IR, up to 30m (98 ft) IR distance
  • Supports 256 G Micro SD card
  • Cable-free
  • Support PoE power supply
Camera
Sensor 1/2.7", 4.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.003Lux (F1.6, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Angle Adjustment Pan: 0° ~ 348°, Tilt: -66° ~ 66°, Rotate: 0° ~ 346°
WDR 120dB
S/N >52dB
Lens
Lens type 2.8mm@F1.6,
Angle of View (H) 101.1°
Angle of View (V) 55.3°
Angle of View (O) 111.1°
DORI
DORI Distance Lens (2.8mm), Detect (63.0m), Observe (25.2m), Recognize (12.6m), Identify (6.3m)
Illuminator
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile
Frame Rate Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
ROI Up to 8 areas
Video Stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
Defog Digital Defog
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Interface
Audio I/O Input: impedance 35kOhm; amplitude 2V [p-p]
Output: impedance 600Ohm; amplitude 2V [p-p]
Alarm I/O 1/1
RS485 N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 10M/100M Base-TX Ethernet
Video Output N/A
Certifications
EMC FCC CFR 47 Part 15
EN 55032:2015
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3-2013
Safety IEC 62368-1
EN 62368-1
UL 62368-1
Environment CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
General
Power DC 12V+/-25%, PoE (IEEE 802.3af)
Power consumption: Max 4.5W
Power Interface Cable-free
Dimensions (Dia. x H) Dia.109 x 62mm (Dia.4.3" x 2.4")
Weight 0.22kg(0.49b)
Material Metal + Plastic
Working Environment -30°C ~ 55°C (-22°F ~ 131°F), Humidity: </=95% RH (non-condensing)
Strorage Environment -30°C ~ 55°C (-22°F ~ 131°F), Humidity: </=95% RH (non-condensing)
Surge Protection 4KV
Reset Button Supported
Protection N/A
