Data Sheet

Product Code:

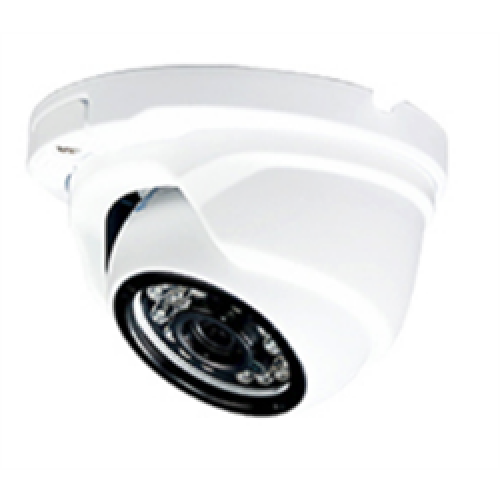

AHD3615SR3-F28

Summary:

5MP,K05 1/2.9 Sensor,1/2.9 Sensor,0.05 Lux (F1.2),DWDR, TVI, CVI, AHD, CVBS

 K05 1/2.9 Sensor.

 5MP resolution.

 AHD:5M20/12.5fps, 4M25/30/15fps, 1080P25/30fps, TVI: 5M20/12.5fps, 4M25/30/15fps, 1080P25/30fps.

 DWDR, 3DNR.

 support OSD.

 Power input DC12V.

 Operation Temperature -30? to 55?.

Camera

AHD3615SR3-F28

Active Pixel

2560*1944

SYNC.

Internal

Resolution

5MP





VIDEO.OUT

AHD:5M20/12.5fps 4M25/30/15fps 1080P25/30fps TVI:5M20/12.5fps 4M25/30/15fps 1080P25/30fps CVI:4M25/30fps 1080P25/30fps

CVBS:PAL/NTSC

Minimum Illumination

0.05Lux(F1.2)

S/N Ratio

48dB(min)(AGC closed)

AE

GLOBE/BLC/FLC

WB

ATW/MWB

DNR

1-16

D-WDR

OFF/ON

MIRROR

DEFAULT/H/V/HV

OSD

Yes

Language

Eng ,Chin1, Chin2,pycc,italiano,portuges

Day/Night

Auto,Color,B/W,Ext

Power Input

DC12V±1V

Power Dissipation

65mA-75mA

Transmission distance

75-5 300M

Operation Temperature

Temperature -30C+55C,Humidity less than 85%RH

Dimension

32*32/38*38*1.6(H)
