Data Sheet

Product Code:

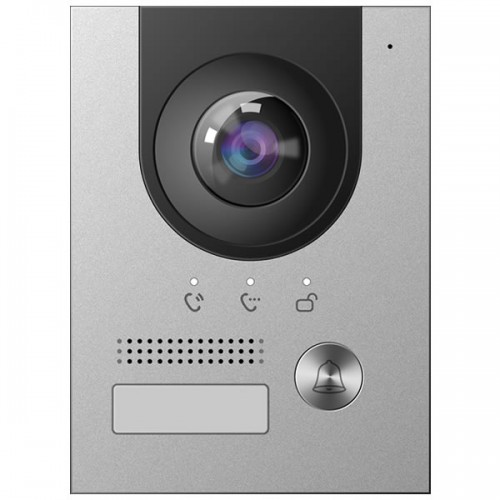

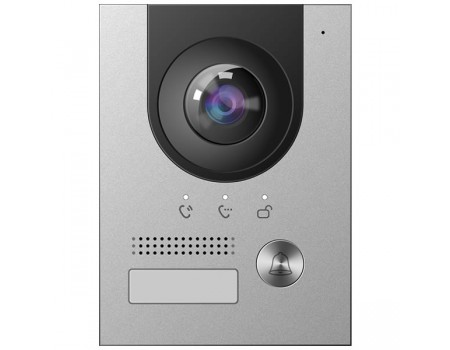

GX-VTO2202F-P

Summary:

2MP camera, Night vision, voice indicator, PoE, 160° view, Compatible w/ VTH5222CH & VTNS1006A-2, IP55, IK07, Surface mounted and flush mounted


  • 2MP CMOS camera
  • Mechanical button
  • Night vision & voice indicator
  • PoE
  • 160° angle of view
  • Compatible with VTH5222CH-S1 and VTNS1006A-2
  • Group call
  • Power supply by 2-wire
  • Aluminium alloy plate
  • IP55 & IK07
  • Surface mounted and flush mounted


System Parameter
Host Processor Embeded processor
Camera CMOS Low Illumination 2MP HD Colorful 160° Fisheye Camera
Angle of view H:160°, V:82°, D:180°
Focal length 1.95 mm
WDR Support
Noise reduction Noise suppression and echo cancellation
Video encoding H.264
Frame rate PAL:25 fps NTSC:30 fps
Audio encoding G.711 U
Video bit rate 256K to 2M
Light compensation IR Supplement
Port
RS-485 Port 1
Alarm Output 1
Lock Control 1 set
Door Status Detection 1 set
Eoc 1 set
Exit Button 1
Tamper Switch 1 set
Network Interface 1
Power Output 12V/100mA
Alarm Parameter
Tamper Alarm Support
Door Sensor Timeout Alarm Support
Alarm Iutput Support
Alarm Output Support
User Parameter
Audio Input Built-in Omnidirectional Microphone
Audio Output Built-in Loudspeaker
Status Indicator calling&communication&unlocked
Communication Methods Digital communication
Unlock Mode Remote unlocking
Auto Snapshot Support
Leave Videos or Text Messages Support
Storage Extended 64 G TF Card
WEB Configuration Support
Real-Time Monitor Support
Normal Parameter
Network Update Online update
Housing material Alumimum
Power supply mode 2-Wire Inteface or PoE
Rated Power 12V DC
Rated Current 1A
Installation method Supports surface mounted and flush mounted
Dimensions 130 mm×96 mm×28.5 mm (5.1"×3.78"×1.1")
Working Temperature -30°C to +60°C (-22°F to +140°F)
Working Humidity 10%–90%
Atmospheric Pressure 86kPa–106kPa
Power Consumption ?12W
Total Weight 0.35kg/0.77lb
Environmental Requirement Outdoor
