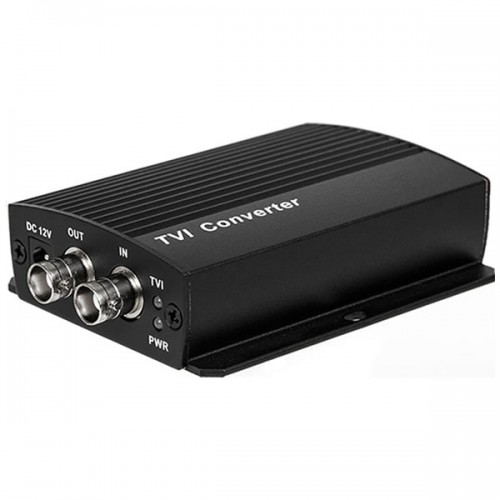

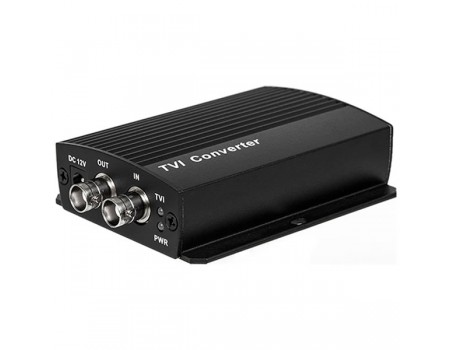

HD-TVI to HDMI Converter
Data Sheet
Product Code:
Product Code:
SED-ADP-AH5100T
Summary:1x HD-TVI input (BNC),1x HD-TVI Spot out (BNC), 1x HDMI Output
- HD-TVI Converter
- 1 Spot Out
Properties | |
Physical Interface | BNC, HDMI |
Input Level | >500 mVp-p |
Output Format | HDMI 1.4b, A standard interface |
Input Auto Cable Equalization | 1080 p, 720 p, supporting 100M75-5 cable input with distance of 100M |
Input Format | 1080 p 25/30, 720 p 25/30/50/60, compatible with V2.0 HDTVI |
Input Impedance | 75 ? |
Output Resolution | 720 p 50/60, 1080 p 50/60 |
Output Format Distance | HDMI 1.4b, D-type base, 10 M distance |
LED | Power LED, video source LED |
Power Supply | 12 VDC, 1A |
Power Consumption | ? 8 W |
Working Humidity | 10 % to 90 % |
Working Temperature | -86º F to + 167º F |
Dimensions (W×D×H) | 2.0 × 1.2 × 1.0" |
Mounting Type | Independent |
