Data Sheet

Product Code:

SVDN8704K-HT

Summary:

4 Channel Hybrid Network Video Recorder Support 5MP HD-TVI 4.0 Cameras Support 6MP IP Cameras 4K(3840x2160) HDMI Video Output H.265/H.265+/H.264 Support 4CH HD-TVI and 4CH IP Cameras

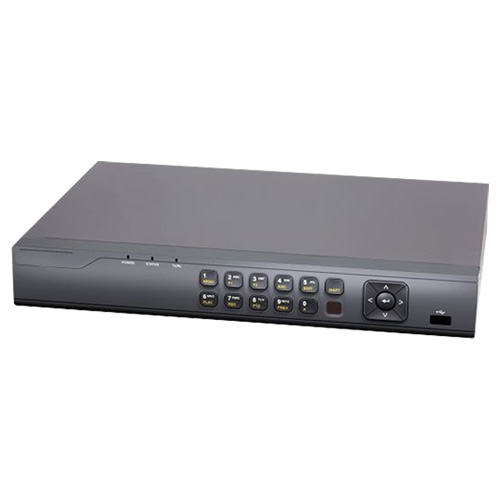

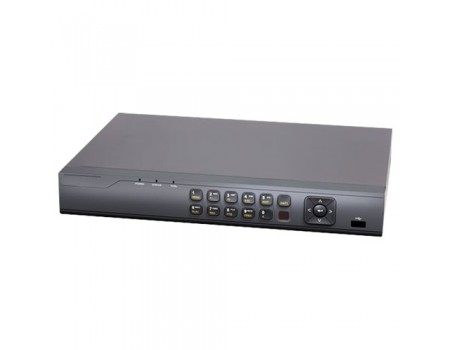

4 Channel Hybrid Network Video Recorder

Support 5MP HD-TVI 4.0 Cameras

Support 6MP IP Cameras

4K(3840x2160)

HDMI Video Output

H.265/H.265+/H.264

Support 4CH HD-TVI and 4CH IP Cameras



Video/Audio Input
Video/Audio Input H.265+/H.265/H.264 Zip+/H.264
Video Input 4-CH
BNC interface (1.0 Vp-p, 75 ?), supporting coaxition
Supported HDTVI input 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720 p25
Supported AHD input 1080p25, 1080p30, 720p25, 720p30
CVBS input Support
IP Video Input 4-ch, Up to 6 MP resolution, Supports H.265+/H.265/H.264+/H.264 IP cameras
Audio compression G.711u
Audio input 4-ch, RCA (2.0 Vp-p, 1 k?)
Video/Audio Output
HDMI/ VGA output 1 -ch , 19 20 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz
Encoding resolution 5 MP/4 MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
CVBS output 1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704×576, NTSC: 704×480
Frame rate Main stream: 5MP@12fps/4 MP@15fps/3 MP@18fps;1080p/720p/WD1/@25fps(P)/30fps(N)
Sub-stream: WD1/4CIF/CIF@25fps (P)/30 fps (N)
Video bit rate 32 Kbps -10 Mbps
Audio output 1-ch, RCA (Linear, 1 k?)
Audio bit rate 64 Kbps
Dual- stream Support
Stream type Video, Video & Audio
Synchronous playback 4ch
Network
Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, PT Cloud, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk
SATA 1 SATA
Capacity Up to 8TB capacity for each disk
External Interface
Network Interface 1, RJ45 10M / 100Mself-adapt ive Ethernet interface
Serial Interface 1; RS-485 serial interface, half-duplex
USB Port 2 × USB2.0
Alarm In/Out 4/1
General
Power Supply DC 12V
Consumption ? 10W
Working Temperature -10 °C ~ +55 °C(14°F - 131°F)
Working Humidity 10% - 90%
Chassis 1U compact case
