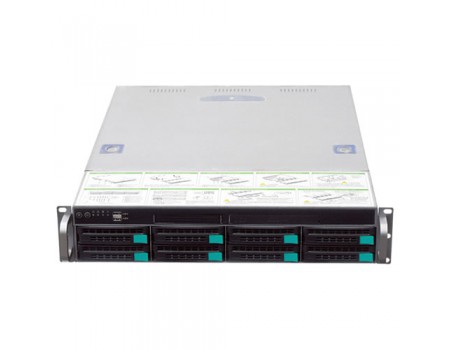

NVSS 256CH Essential Series Super NVR (8 Hot-Swap, Remote Support, RAID 5/6)
NVSS 256CH Essential Series Super NVR (8 Hot-Swap, Remote Support, RAID 5/6)
   0 reviews  |  Write a review
Data Sheet

Product Code:

NVSS6708A02

Summary:

256CH, 5MP, 3MP, 1080P, 720P, D1, Support 8 hot-swap SATA HDDs, 6TB for each, Embedded Linux, HDMI, Audio, H.264, 3x 1000Mbps RJ45 Ports, 4x USB, 64ch POS, Multiple network monitoring, Remote Support, RAID 5/6

Login for price
  • Up to 256 pcs 5M / 3M /1080P IPC connections and recording & total 256Mbps input
  • Up to 9ch 5M / 4M / 3M / 16ch 1080P or 32ch 720P or 64ch D1 realtime preview
  • Up to 9ch 5M / 4M / 3M / 16ch 1080P or 16ch 720P relatime playback
  • Support 8 hot-swap SATA HDDs, Raid5/6 fucntion
  • Support all netvision series IPC, Dahua, hikvision,Nihon etc
  • ONVIF Version 2.3 conformance, support motion record with ONVIF IPC
  • Support 7 different video analysis function
  • 2 HDMI + 1 VGA; 3 intel 1000M network adapter; I/O: 4 inputs / 2 outputs; 4U case
  • With A02 mSata card by default (linux destop version OS)
Model NVSS6708
Main Processor Intel i7 Series CPU
RAM 16GB
Operating System 64bit Linux OS
System Resources live, recording, playback, backup & remote access
Control Mode Mouse
IP Camera Input 256ch@5M / 4M / 3M / 1080P / 720P / D1
IP Camera Supported List Netvision, Hikvision, Dahua, XiongMai, Topsee, NIHON, ONVIF etc. IP cameras
Video Output 1ch VGA + 2ch HDMI interface, Only support one monitor at present, HDMI output 4K
Voice Intercom 1ch audio & 1ch Mic in, 1ch audio out
Display Split 1/4/6/9/13/16/20/25/33/36/49/64/81/100/121/144 split
Resolution 3840*2160(only HDMI) / 1920*1080 / 1680*1050 / 1440*900 / 1280*1024 / 1024*768
Tour Display
OSD Camera title, time, date, video loss, recording
Compression
Recording Resolution 256ch@5M / 4M / 3M / 1080P / 720P / D1
Max Encoding Speed
Recording Bit Rate Max Input bandwidth: 512Mbps, Max output bandwidth: 256Mbps
Recording Quality
Recording Mode Manual, Schedule(Continuous, Motion detection, Sensor Alarm), Stop
Recording Priority Manual >Alarm >MD >Regular
Trigger Events Recording, PTZ movement, Alarm, Email, Buzzer
Motion Detection Support
Video Loss & Camera Blank
Alarm Input 4ch, low level effective, green terminal interface
Relay Output 2ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface
Playback Channel 16ch@5M / 4M / 3M / 1080P / 720P / D1
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search, Icon Search
Playback Function Simultaneous play, single frame, Icon Search, Record mode filter, Backup, Grab
Backup Mode Network download / USB HDD / Mobile DVD
Ethernet 3 RJ-45 ports(1000M)
Max Remote Users
Hard Disk 8 SATA, 6TB for each; Independent HDD rack, support hot swap, RAID
HDD Management support RAID 5, 6
USB Interface 4 USB ports
RS232
Power Supply 100V-240Vac, 47-63Hz
Power Consumption Max. 1200W(Include HDD)
Working Environment Temperature: 0°C~60°C; Humidity: 10%~80% ( non-condensation)
Dimension 650mmx440mmx176mm (WxDxH), 4U case
Weight 28Kg
