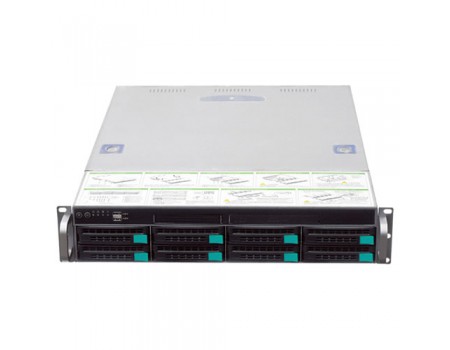

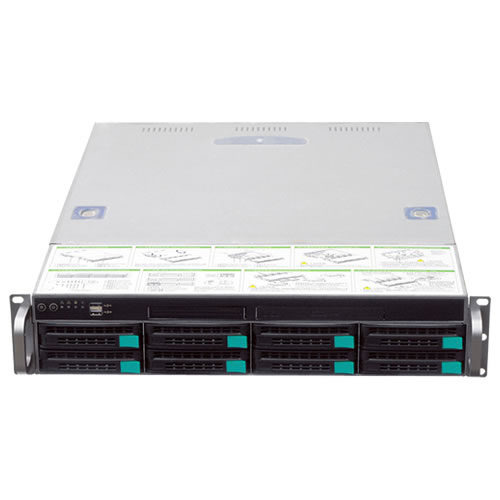

NVSS 36CH Essential Series Super NVR (8 Hot-Swap, Remote Support, RAID 5/6)
Data Sheet
Product Code:
Product Code:
NVSS6108A02
Summary:36CH, 5MP, 3MP, 1080P, 720P, D1, Support 8 hot-swap SATA HDDs, Up to 32TB, Embedded Linux, HDMI, Audio, H.264, 1000Mbps RJ45 Ports, USB, POS, Multiple network monitoring, Remote Support
- X86 embedded linux super NVR, with NVSS-N6112 mothetboard + 4G RAM;
- Up to 36 pcs 1080P IPC connections and recording,
- Support GPU hardware decode function
- Up to 9ch 5M(12fps) / 4M(20fps) / 3M(25fps) / 1080P / 16ch 720P / 36ch D1 realtime preview
- Up to 9ch 5M(12fps) / 4M(20fps) / 3M(25fps) / 1080P / 16ch 720P relatime playback
- 8 hot swap Sata HDD, RAID5/6 supported
- 1 HDMI + 2 VGA; 2 intel 1000M network adapter; 6 USB interface
- 2U case, 100-240V AC input
- With A02 mSata card by default (linux destop version OS)
| Model | NVSS6108A02 |
| System | |
| Main Processor | Embedded Intel celeron quad core CPU |
| Operating System | Embedded LINUX |
| Motherboard | NVR-SV1-190A8 Embedded Motherboard |
| Memory | 8GB |
| Case | Hot-dipped galvanized sheet steel(1.2mm thickened), High-precise aluminum alloy slide, Patented pull-out rack design |
| Fan | 4 * Dual ball screw bearing fans, MTBF>100,000h, support replacement during operation |
| Interface | Local GUI &WEB GUI |
| Video & Audio | |
| Input | 36ch@5M / 3M / 1080P / 720P / D1 |
| Transmission | 36ch@5M / 3M / 1080P / 720P / D1 |
| Recording | 36ch@5M / 3M / 1080P / 720P / D1 |
| Preview | 9ch 5M(12fps) / 3M(20fps) / 1080P(30fps) / 18ch 720P / 36ch D1 realtime preview |
| Playback | 9ch 5M(12fps) / 3M(20fps) / 1080P(30fps) / 16ch 720P / D1 |
| Audio | 1ch audio & 1ch Mic in, 1ch audio out |
| Recording | |
| Recording Mode | Manual, Schedule(Regular(Continuous), MD(Motion detection), Sensor Alarm), Stop |
| Alarm Recording | Motion detection, External alarm |
| Backup Mode | Network download / USB HDD |
| Display | |
| Video Output | 1ch VGA + 1ch HDMI or 2 HDMI sync video output |
| Multi-screen Display | All screens: 1/4/6/9/13/16/20/25/33/36/40/49/64 |
| Privacy Masking | Four customized zones for privacy masking for each area |
| Hard Disk | |
| Hard Disk | 8 SATAII, 4TB for each; Independent HDD rack, support hot swap |
| Network | |
| Interface | 2 RJ-45 ports(1000M) |
| Sensor Alarm | |
| Alarm Input | 4ch, low level effective, green terminal interface |
| Relay Output | 2ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface |
| Interface | |
| USB | 7 USB ports |
| General | |
| Power Supply | 100V-240Vac, 47-63Hz |
| Power Consumption | Max. 450W(Include HDD) |
| Working Environment | Temperature: 0°C~60°C; Humidity: 10%~80% ( non-condensation) |
| Dimension | 550mmx440mmx88mm (WxDxH) |
| Weight | 15Kg |
