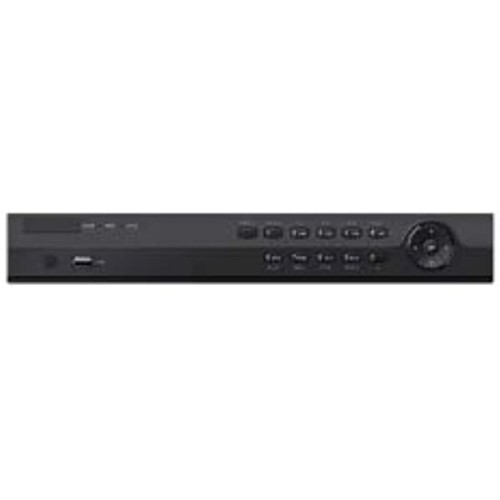

Galaxy Platinum 8CH 8MP 2SATA 1U 8PoE NVR
Galaxy Platinum 8CH 8MP 2SATA 1U 8PoE NVR
   0 reviews  |  Write a review
Data Sheet

Product Code:

NR32P8-8

Summary:

8CH, 8MP, 80Mbps, H.265, 2CH@4K, 1 x HDMI, 1x VGA, 8x RJ45 10/100/1000M, Audio 1in/1out, Alarm 4in/1out, 2SATA up tp 6TB/ea, 1x USB2.0 1xUSB3.0, 1U

Login for price

Professional and Reliable

  • Dual-OS design to ensure high reliability of system running
  • ANR technology to enhance the storage reliability when the network is disconnected

HD Input

  • H.265/H.264/H.264+/MPEG4 video formats
  • Connectable to the third-party network cameras
  • Up to 8 IP cameras can be connected
  • Recording at up to 8 MP resolution
  • Supports live view, storage, and playback of the connected camera at up to 8 MP resolution

HD Output

  • HDMI and VGA independent outputs provided
  • HDMI Video output at up to 4K (3840 × 2160) resolution

HD Storage

  • Up to 2 SATA interfaces connectable for recording and backup
  • Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format

HD Transmission

  • 1 self-adaptive 10M/100M/1000 Mbps network interface
  • 8 independent PoE network interfaces are provided

Various Applications

  • Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
  • Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
  • VCA detection alarm is supported
  • Instant playback for assigned channel during multi-channel display mode
  • Smart search for the selected area in the video; and smart playback to improve the playback efficiency
  • Supports HDD quota and group modes; different capacity can be assigned to different channels.

Model



NR32P8-8





Video/ Audio input

IP video input

8-ch

Incoming bandwidth

80 Mbps

Outgoing

bandwidth

160 Mbps





Video/

Audio output

HDMI output resolution

4K   (3840   ×   2160)/30Hz,   2K   (2560   ×   1440)/60Hz,   1920   ×

1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 ×

720/60Hz, 1024 × 768/60Hz

VGA output resolution

1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×

768/60Hz

Audio output

1-ch, RCA (Linear, 1 K Ohm)







Decoding

Decoding format

H.265/H.264/H.264+/MPEG4

Recording resolution

8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2 CIF/CIF/QCIF

Synchronous

playback

8-ch

Capability

2-ch @ 4K, or 8-ch @ 1080p

Network management

Network protocols

TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS



Hard disk

SATA

2 SATA interfaces for 2HDDs

Capacity

Up to 6TB capacity for each disk





External interface

Two-way audio

1-ch, RCA (2.0 Vp-p, 1k Ohm)

Network interface

1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

USB interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

Alarm in/out

4/1



POE

Interface



Interface

8 RJ-45 10/100 Mbps

self-adaptive Ethernet

interfaces

Power

</= 120 W

Supported standard

IEEE 802.3 af/at













General

Power supply

100 to 240 VAC

Power

</=180 W

Consumption

(without hard disk)

</= 15 W

Working

temperature

-10 to +55° C (14 to 131° F)

Working humidity

10 to 90 %

Chassis

385 mm chassis

Dimensions (W × D × H)

385 × 315× 52 mm (15.2" × 12.4" × 2.0")

Weight

(without hard disk)

</= 3 kg (6.6 lb)
