Data Sheet

Product Code:

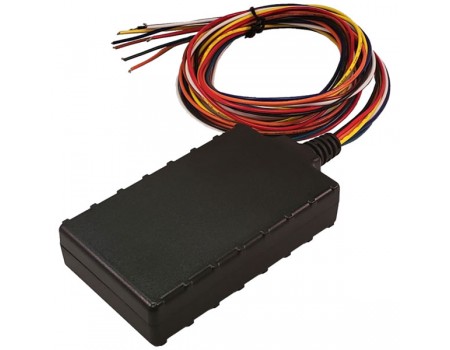

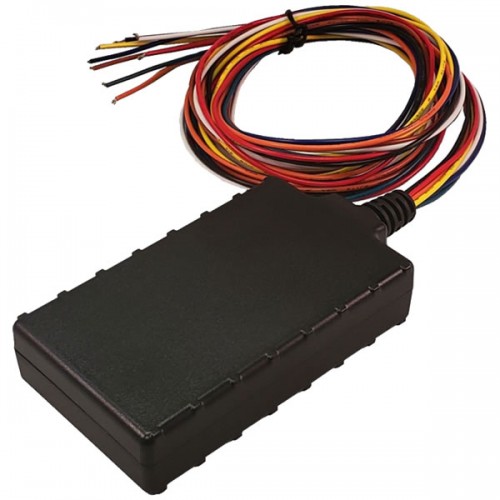

GX-GPS-IOT1230 is suitable for GPS Tracking and simple IOT solutions. Monthly service fee is required

  • HSPA and/or GSM/GPRS Connectivity
  • High Sensitivity GPS
  • Built-in Antenna for Easy Installation
  • Power Management and Sleep Modes
  • Battery Operated/Powered
  • Monthly service fee is required

Temperature -30deg. to +60deg. C (connected to primary power)
-10deg. to +60deg. C (operating on internal battery)
-20deg. to +25deg. C <= 6 months (long term storage with battery)
Humidity 95% RH @ 50deg. C non-condensing
Shock and Vibration U.S. Military Standard 202G, 810F SAE J1455
ESD IEC 61000-4-2 (4KV test)
Connectors/SIM Access
GPS Antenna Internal
Cellular Antenna Internal
Industry Certifications FCC, IC, PTCRB
Device Management
PULS™ Monitor, manage, upgrade fi rmware, confi gure and troubleshoot devices remotely
North American Variant I LTE Cat M1 1900 (B2)/AWS 1700 (B4)/700 (B12)* MHz
North American Variant II LTE Cat M1 AWS 1700 (B4)/700 (B13) MHz
Satellite Location (GNSS)
Constellation Support GPS, GLONASS, SBAS Engine (WAAS, EGNOS, MSAS, GAGAN)
Channels 55 Channel
Tracking Sensitivity -167 dBm
Acquisition Sensitivity -157 dBm (hot start)
-148 dBm (cold start)
Location Accuracy ~2.0m CEP Open Sky (GPS SBAS 24 hours static)
Location Update Rate 1 Hz
AGPS Location assistance capable
Operating Voltage

12/24 VDC Vehicle Systems
9-32 VDC (startup, operating)
7-32 VDC (momentary)

Power Consumption Typical 750 uA @ 12V (deep sleep)
Typical 12 mA @ 12V (radio-active sleep/idle)
Typical 40 mA @ 12V (active tracking w/GPS and cell enabled)
Dimensions 2.10 x 3.80 x .77" (53.4 x 96.6 x 19.5 mm)
Weight 3.95 oz. (112 g)
Battery Pack
Battery Capacity 200 mAh
Battery Technology Lithium-Ion
Charging Temperature 0deg. to +45deg. C
Data Support SMS, UDP Packet Data
Product Options CalAmp Telematics Cloud API
Accelerometer Built-in, triple-axis (motion sensing, tilt detection)
Comprehensive I/O
Ignition Input 1 fixed bias
Digital Inputs 2 (high/low selectable 0-32 VDC)
Digital Outputs 3 (open collector relay 150mA)
  • Reduce Payroll
    When you implement a Fleet Management solution into your workflow your employees will be more conscious of their time management. You will spend much less time in asking “where are my guys?“ and more time knowing that they are where they are supposed to be.

  • Reduce overtime
    Accountability, better scheduling, routing, ensuring that the closest vehicle is being dispatched are all efficiencies that will ensure work gets done in a timely manner. This will dramatically reduce the amount of overtime associated when operating a fleet.

  • Reduce Fuel Expenses
    When your vehicle are travelling the shortest route to your service, sales or delivery points you will reduce your fuel expenses. Extra trips that are not work related can be eliminated by implementing a company vehicle use policy.

  • Increase Billable Hours
    When you operate your fleet at higher efficiency you simply get more done. More sales, service calls & deliveries all lead to more revenue.

  • Reduce Maintenance Costs
    By setting up maintenance reminders you ensure that vehicles are serviced when they are supposed to be. Predictive and preventative maintenance is crucial in reducing higher cost emergency repairs that usually result in lost productivity as well.

  • Increased Efficiency
    Using route optimisation as well as landmarks ensures that staff are getting to where they need to be in the most efficient manner possible. Being able to see where there is traffic congestion and avoiding it is always a good thing.

  • Reduce Idling
    Idling gets you nowhere! When your vehicles are just idling you increase the wear and tear as well as simply wast money. Be notified when vehicles are idling as well as include that in your company policy.

  • Increase Safety
    When you implement a Fleet Management solution it makes people accountable and more aware of their vehicle usage. Increased safety is one of the positive by-products when employees know that vehicles are being monitored.

  • Reduce Un-Authorised Usage
    Un-authorised vehicle usage dramatically affects the bottom line. When your vehicles are not making money they are losing money!

  • Reduce Speeding
    Speeding Kills. Speeding puts everyone and everything at risk. From the obvious safety issues to increased fuel consumption and skyrocketing insurance costs. A fleet management solution will keep speeding in check and ensure that drivers are in compliance of the rules of the road.

  • Eliminate Billing Disputes
    Being able to provide your customers an audit trail of when your employees attended their location will dramatically reduce the incidents of billing disputes. You can now show who did the work, when the work was done, for how long and at which locations.

  • Reduce Management Costs
    A Fleet Management solution will reduce your management costs. It eliminates the need for the constant “where are they now” question which usually involves disrupting multiple people. You can now see where everyone is in real time.

  • Increase Customer Satisfaction
    Customers always want to know when you will arrive and that service was performed…It is simply good customer service!

  • The Bottom Line
    When you effectively implement a Fleet Management solution, you simply increase the bottom line. GPS Tracking is an instantaneous R.O.I. which usually results in a 5 -10 to 1 return on investment.
