Data Sheet

Product Code:

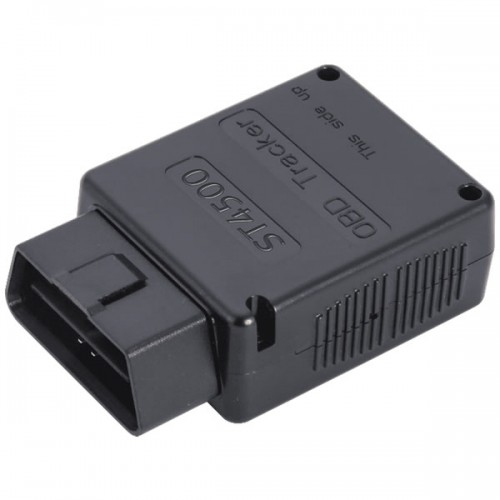

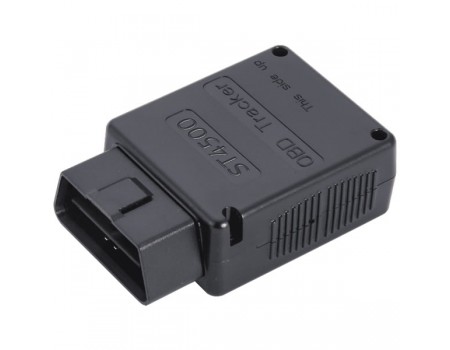

GX-GPS-OBD2 is an OBD2 device that can be easily installed by plugging into the OBD2 port. It is great for fleet tracking when a wired in unit is not an option. No installation required. Monthly service fee is required.

  • Network: LTE Cat M1/NB-IoT
  • Detect OBD-II Protocol Automatically
  • Read Extensive Engine Diagnostics (User Selectable), DTC and Vehicle ID
  • Collect information Fast & Accurate and Notify to user
  • Configurable Report Format
  • Multiple Report Mode and Condition
  • Easily preconfigure for Report Mode
  • DPA(Driving Pattern Analysis) / CR(Crash Reconstruction)
  • Circular / Polygonal Geofencing
  • Maintenance Server Supported
  • No installation required
  • Monthly service fee is required

Frequency LTE module for global use; Cat M1, Cat NB1 deployed bands: LTE FDD: B1, B2, B3, B4, B5, B8, B13, B17, B19, B20, B26, B28 LTE TDD: B39 (for Cat. M1only) EGPRS: 850/1800/1900MHz
Command / Report sent via SMS MT/MO PDU / Text mode, SMS over SG/NAS
Back-up Server Supported (via dual IP)
GPS/Glonass Receiver GPS & Glonass
GPS L1 band(1575.42MHz), Glonass L1 band (1601.71MHz)
GPS/Glonass Sensitivity Tracking -167 dBm
Reacquisition -161 dBm
Cold start -149 dBm
I/O Connection J1939 protocols
J1850(PWM or VPW) protocols
ISO9141-2 & ISO14230, K-Line
ISO14230-4 Keyword Protocol 2000
ISO 15765-4 protocols(CAN)
Housing Dimension 74(W) x 46(L) x25(T) mm
Weight 71g (with back-up battery)
Power Supply DC 8 V ~ 33 V, Main power +/- inversion protection
Power Consumption Active mode : 120~130mA @12V
Sleep mode : Approx. 5mA @12V
Deep Sleep mode : Approx. 2mA @12V
Motion Detection Built-in 3-axis accelerometer
Back-up Battery Rechargeable 3.7V, 350mAh Li-ion Battery
Electric Protection Protection against ESD and overvoltage
Operational Temperature Range -30deg.C ~ +80deg.C
Certificates CE, FCC, PTCRB, RoHS (TBD)
  • Reduce Payroll
    When you implement a Fleet Management solution into your workflow your employees will be more conscious of their time management. You will spend much less time in asking “where are my guys?“ and more time knowing that they are where they are supposed to be.

  • Reduce overtime
    Accountability, better scheduling, routing, ensuring that the closest vehicle is being dispatched are all efficiencies that will ensure work gets done in a timely manner. This will dramatically reduce the amount of overtime associated when operating a fleet.

  • Reduce Fuel Expenses
    When your vehicle are travelling the shortest route to your service, sales or delivery points you will reduce your fuel expenses. Extra trips that are not work related can be eliminated by implementing a company vehicle use policy.

  • Increase Billable Hours
    When you operate your fleet at higher efficiency you simply get more done. More sales, service calls & deliveries all lead to more revenue.

  • Reduce Maintenance Costs
    By setting up maintenance reminders you ensure that vehicles are serviced when they are supposed to be. Predictive and preventative maintenance is crucial in reducing higher cost emergency repairs that usually result in lost productivity as well.

  • Increased Efficiency
    Using route optimisation as well as landmarks ensures that staff are getting to where they need to be in the most efficient manner possible. Being able to see where there is traffic congestion and avoiding it is always a good thing.

  • Reduce Idling
    Idling gets you nowhere! When your vehicles are just idling you increase the wear and tear as well as simply wast money. Be notified when vehicles are idling as well as include that in your company policy.

  • Increase Safety
    When you implement a Fleet Management solution it makes people accountable and more aware of their vehicle usage. Increased safety is one of the positive by-products when employees know that vehicles are being monitored.

  • Reduce Un-Authorised Usage
    Un-authorised vehicle usage dramatically affects the bottom line. When your vehicles are not making money they are losing money!

  • Reduce Speeding
    Speeding Kills. Speeding puts everyone and everything at risk. From the obvious safety issues to increased fuel consumption and skyrocketing insurance costs. A fleet management solution will keep speeding in check and ensure that drivers are in compliance of the rules of the road.

  • Eliminate Billing Disputes
    Being able to provide your customers an audit trail of when your employees attended their location will dramatically reduce the incidents of billing disputes. You can now show who did the work, when the work was done, for how long and at which locations.

  • Reduce Management Costs
    A Fleet Management solution will reduce your management costs. It eliminates the need for the constant “where are they now” question which usually involves disrupting multiple people. You can now see where everyone is in real time.

  • Increase Customer Satisfaction
    Customers always want to know when you will arrive and that service was performed…It is simply good customer service!

  • The Bottom Line
    When you effectively implement a Fleet Management solution, you simply increase the bottom line. GPS Tracking is an instantaneous R.O.I. which usually results in a 5 -10 to 1 return on investment.
