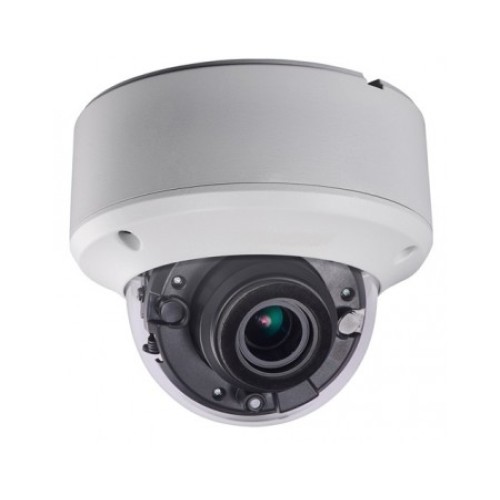

Galaxy Platinum 8MP IR Motorized VF HD-TVI Dome Camera

Camera

Image Sensor

8.29megapixelprogressive scan CMOS

Frame Rate

TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,

2MP@30fps

CVI: 8MP@12.5fps, 8MP@15fps

AHD: 8M@12.5fps, 8M@15fps

CVBS: 960H P/N

Resolution

3840 (H) × 2160 (V)

Min. illumination

Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/12.5s to 1/50, 000 s

NTSC: 1/15 s to 1/50, 000 s

Lens

2.7 mm to 13.5 mm motorized vari-focal lens

Horizontal Field of View

108.1°to 45.6°

Lens Mount

Φ14

Day & Night

IR cut filter

Angle Adjustment

Pan:0° to 355°; Tilt: 0° to75°; Rotate:0° to 355°

Synchronization

Internal synchronization

DWDR (Digital Wide Dynamic Range)

105 dB

Menu

AGC

Yes

D/N Mode

Auto/Color/BW(Black and White)

White Balance

Auto/Manual

BLC

Yes

DWDR (Digital Wide Dynamic Range)

Yes

Functions

Brightness, Sharpness, DNR, Mirror, Smart IR, HLC

Interface

Video Output

1 HD analog output

Switch Button

TVI/AHD/CVI/CVBS

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F),humidity: 90% or less (non-condensation)

Power Supply

9 VDC to 15 VDC

-A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC

*You are recommended to use one power adapter to supply the power for one camera.

Power Consumption

Max. 6.4W

-A: Max.8.2W

Protection Level

IP67

Material

Metal

IR Range

Up to 60m

Communication

Up the coax, Protocol: HIKVISION-C(TVI output)

Dimensions

Ø 145.2 mm × 124.1 mm (Ø 7.1" × 4.9")

Weight

Approx. 640 g (1.41lb.)
