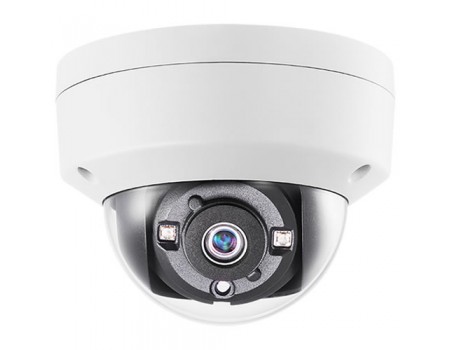

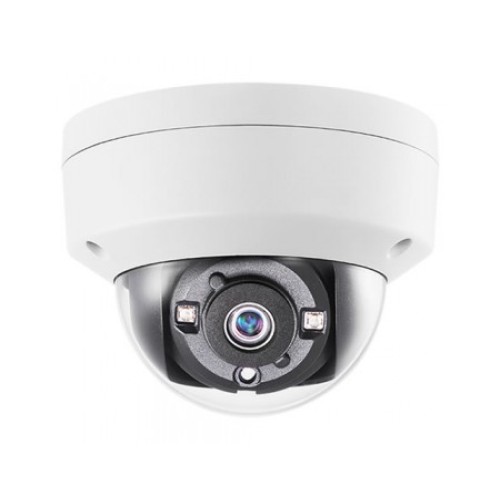

Galaxy Platinum 5MP IR HD-TVI Dome Camera
Galaxy Platinum 5MP IR HD-TVI Dome Camera
   0 reviews  |  Write a review
Data Sheet

Product Code:

AC326-OD-3.6

Summary:

2560x1944@20fps, 0.01 Lux, 3-Axis, True Day/Night, DNR, Smart IR, ICR, 2 Matrix IR 2.0 up to 65ft (20m), OSD/UTC, 3.6mm Lens, DC12V, IK10, IP67

Login for price
  • 2.8mm Fixed Lens
  • 2560x1944@20fps
  • IP67
  • 2 Matrix IR 2.0 LED up to 65ft
  • UTC Control to OSD Menu
  • IK10 Vandal-Proof Dome
  • 3-Axis Easy Installation
  • Smart IR
  • DC 12V
Camera
Image Sensor1/2 .7 "CMOS
Signal SystemNTSC/PAL
Effective Pixels2560(H)x1944(V)
Min. Illumination0.01Lux, 0 Lux with IR
Shutter Speed1/30 (1/25)s to 1/50,000 s
Lens2.8mm
Day & NightICR
SynchronizationInternal
Video Frame Rate2560 x 1944@20fps
HD Video Output1 HD-TVI Output
S/N RatioMore than 62dB
Menu
AGCSupport
D/N ModeAuto/ Color/BW
White BalanceATW/MWB
BLCSupport
FunctionBrightness,Sharpness,Digital noise reduction,Mirror, Smart IR
General
Working Temperature
/Humidity		-40 °F ~ 140 °F (-40 °C ~ 60 °C)
Humidity 90% or less (non-condensing)
Power SupplyDC 12V
Power ConsumptionMax. 3W
Impact ProtectionIK10
Weather Proof RatingsIP67
IR RangeUp to 65ft (20m)
Dimensions4.4"x3.3" (111.0x82.5 mm)
Weight0.8lb(350g)
