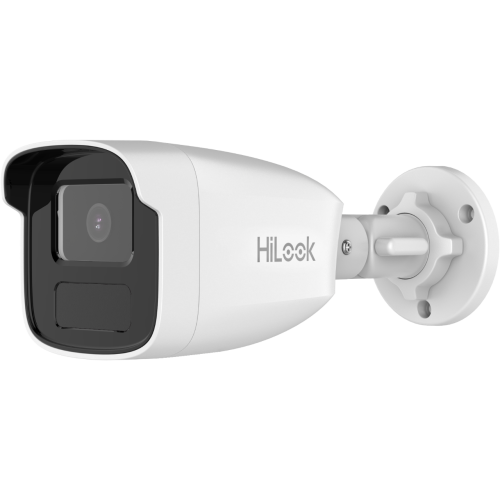

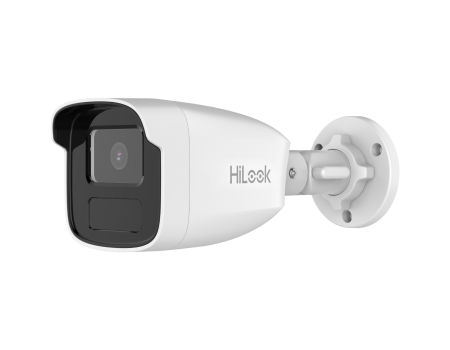

HiLook 4 MP WDR Fixed Bullet Network Camera
HiLook 4 MP WDR Fixed Bullet Network Camera
   0 reviews  |  Write a review
Data Sheet

Product Code:

IPC-B440H(4mm)

Summary:

4MP, 2560x1440, @20fps, H.265, 120dB WDR, Motion Detection, IR, up to 50m (164ft), IP67, 4mm Lens, Fixed, DC12V

Login for price
  • High quality imaging with 4 MP resolution
  • Clear imaging against strong back light due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • Water and dustresistant (IP67)
  • Easy installation with Power over Ethernet (PoE) technology
  • 3D DNR technology delivers clean and sharp images
Go to official website >>>
  • Camera
  • Image Sensor1/3" Progressive Scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
  • Shutter Speed1/3 s to 1/100, 000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
  • Lens
  • Lens TypeFixed focal lens, 4 and 6 mm optional
  • Focal Length & FOV

    4 mm, horizontal FOV 83.2°, vertical FOV 45.5°, diagonal FOV 98.3°

    6 mm, horizontal FOV 50.9°, vertical FOV 28.8°, diagonal FOV 58.5°

  • Lens MountM12
  • Iris TypeFixed
  • Aperture

    4 mm, F2.0

    6 mm, F1.6

  • DORI
  • DORI

    4 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m

    6 mm, D: 128 m, O: 50 m, R: 25 m, I: 12 m

  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 50 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • Video
  • Main Stream

    50 Hz: 20 fps (2560 × 1440)

    25 fps (1920 × 1080, 1280 × 720)

    60 Hz: 20 fps (2560 × 1440)

    30 fps (1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

  • Video Compression

    Main stream: H.265+/H.264+/H.265/H.264

    Sub-stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Region Of Interest (ROI)1 fixed region for main stream
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • User/HostUp to 32 users. 3 levels: administrator, operator and user
  • ClientiVMS-4200, Hik-Connect
  • Web Browser

    Plug-in required live view: IE 10+

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+

    Local service: Chrome 57.0+, Firefox 52.0+

  • Image
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)120 dB
  • Image EnhancementBLC, 3D DNR
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Event
  • Basic EventMotion detection, video tampering alarm, exception
  • LinkageUpload to FTP, notify surveillance center, send email, trigger capture
  • General
  • Power

    12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

  • Camera MaterialFront cover: metal, body: plastic, bracket: metal
  • Camera Dimension83.7 mm × 80.7 mm × 206.6 mm (3.3" × 3.2" × 8.1")
  • Package Dimension260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
  • Camera WeightApprox. 430 g (1.0 lb.)
  • With Package WeightApprox. 648 g (1.4 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Approval
  • EMC

    FCC SDoC: 47 CFR Part 15, Subpart B;

    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014;

    RCM: AS/NZS CISPR 32: 2015;

    KC: KN 32: 2015, KN 35: 2015

  • Safety

    CB: IEC 62368-1: 2014+A11;

    CE-LVD: EN 62368-1: 2014/A11: 2017;

    BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005

  • Environment

    CE-RoHS: 2011/65/EU;

    WEEE: 2012/19/EU;

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP67: IEC 60529-2013
