Data Sheet

Product Code:

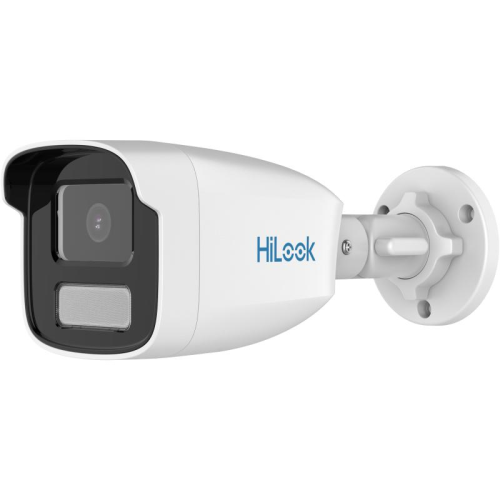

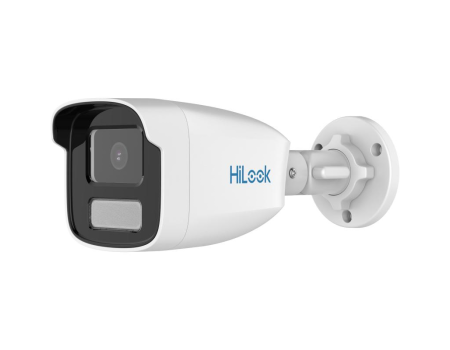

IPC-B449H(4mm)(C)

Summary:

4MP, 2560x1440, @20fps, H.265+, Motion Detection, IR, up to 50m (164ft), IP67, 4mm Lens, Fixed, PoE/DC12V

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67)
  • 24/7 colorful imaging

Camera

Image Sensor

1/3" Progressive Scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.001 Lux @(F1.0, AGC ON), B/W: 0 Lux with white light

Shutter Speed

1/3 s to 1/100, 000 s

Day & Night

24 colorful imaging

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 96.5°, vertical FOV 50.8°, diagonal FOV 113.9°

4 mm, horizontal FOV 75.8°, vertical FOV 40.8°, diagonal FOV 89.1°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.0

DORI

DORI

2.8 mm, D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m

4 mm, D: 77.4 m, O: 30.7m, R: 15.5m, I: 7.7 m

Illuminator

Supplement Light Type

White light

Supplement Light Range

Up to 50 m

Smart Supplement Light

Yes

Video





Main Stream

50 Hz: 20 fps (2560 × 1440)

25 fps (1920 × 1080, 1280 × 720)

60 Hz: 20 fps (2560 × 1440)

30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: .265+/.264+/H.265/H.264

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Region of Interest (ROI)

1 fixed region for main stream

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™,

SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface, ISAPI

User/Host

Up to 32 users. 3 levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect



Web Browser

Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+


Image Settings

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client

software or web browser.

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120 dB

Image Enhancement

BLC, 3D DNR

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

Motion detection, video tampering alarm, exception

Linkage

Upload to FTP, notify surveillance center, send email, trigger capture

General

Power

12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Camera Material

Front cover: metal, body: plastic, bracket: metal

Camera Dimension

83.7 mm × 80.7 mm × 206.6 mm (3.3" × 3.2" × 8.1")

Package Dimension

260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")

Camera Weight

Approx. 410 g (0.9 lb.)

With Package Weight

Approx. 644 g (1.4 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

Startup and Operating

Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP

address filter

Approval





EMC

FCC-SDoC: 47 CFR Part 15, Subpart B

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN

50130-4: 2011 +A1: 2014;

RCM: AS/NZS CISPR 32: 2015;

KC: KN 32: 2015, KN 35: 2015

Safety

CB: IEC 62368-1: 2014+A11;

CE-LVD: EN 62368-1: 2014/A11: 2017



Environment

CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU;

Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013
