Data Sheet

Product Code:

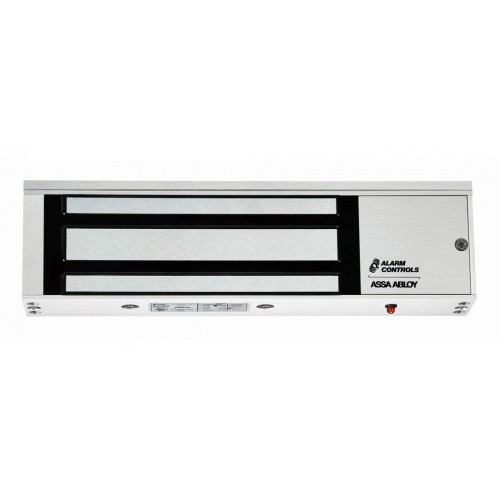

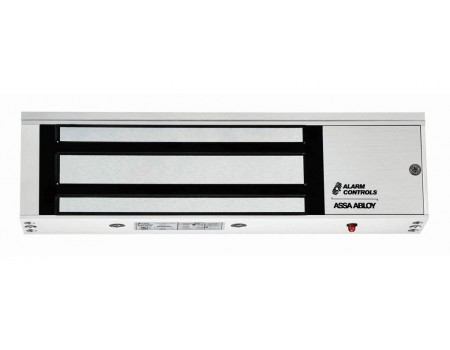

GX-K1200LB

Summary:

Bond sensor and door status sensor signal a powered and securely locked door Self drilling TEC screws Built-in arc suppression Instant release, no hysteresis E-Z mount system, no special tools required Non-aluminum parts are plated to resist corrosion Limited lifetime warranty

  • 1200 lbs holding force
  • Magnet size: 10-1/2" L x 2-7/8" H x 1-1/2" W
  • Armature size: 7-3/8" L x 2-3/8" H x 9/16" W
  • Operates on 12 or 24 VDC, switch selectable
  • Low current draw: 400 mA at 12 VDC, 200 mA at 24 VDC
  • Operating temperature: +14 to +131F [-10 to +55C]
  • Sensors have SPDT 3A relay contacts
  • UL 10C, UL 294 and ULC-S104 (Canada) listeD
