Data Sheet

Product Code:

GX-KB04

Summary:

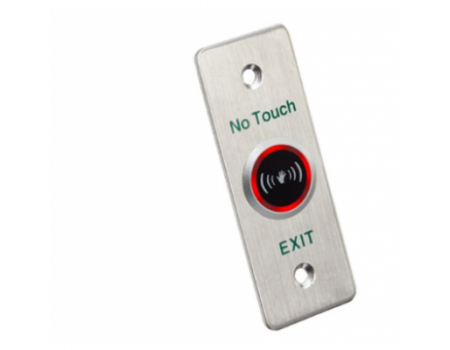

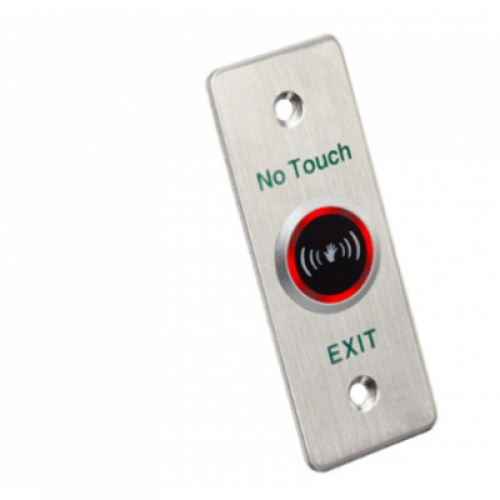

Infrared sensor, Aluminum panel, Passed 1 million times aging test, NO/NC/COM contact, 1A@30V DC, 0.5A@125V AC

  • Infrared sensor
  • Aluminum panel
  • Passed 1 million times aging test
  • NO/NC/COM contact
  • 1A@30V DC, 0.5A@125V AC
Dimension (LxWxH) 86x50x34mm(3.39x1.97x1.34")
Input Voltage DC12V
Working Current 20mA(standby), 50mA(working current)
Current Rating 1A@30VDC,0.5A@125VAC
Output Contact NO/NC/COM contact
Panel aluminum panel
Aging Test already passed 1 million times aging test;
Suitable Doors all kinds of narrow doorframes
Working Temperature -20°C to +50°C (-4°F to 122°F)
Working Humidity 0 to 95% (relative humidity)
Maximum Inductive Distance 40 to 100mm(1.57 to 3.94") (adjustable)
LED Indicator Status white/green/red LED, indicates power-off/active/Standby
Product Weight 0.15kg (0.33lb)
