Data Sheet

Product Code:

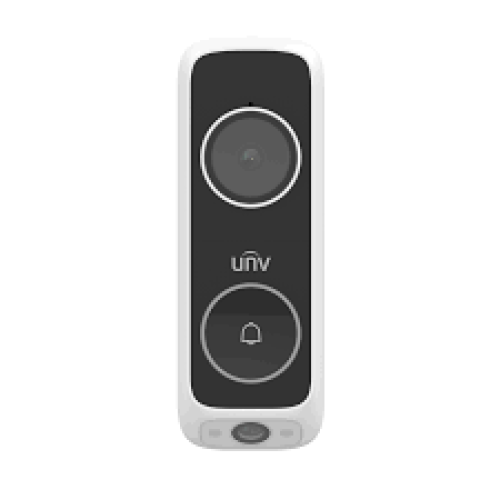

ED-525B-WB

Summary:

3MP + 2MP dual cameras, support connection to Uniview NVR for live view, playback, and alarm search, supports mechanical chime and wireless chime, supports true HDR and WDR, (UNV-Link app allows you to answer visitor calls anytime), support dual-band Wi-Fi (2.4 GHz and 5 GHz) IR range up to 5m, LED light range up to 2m

  •  Supports mechanical chime and wireless chime.
  •  Supports connection to a Uniview NVR for live view, playback, and alarm search.
  •  Supports reporting motion detection alarms, human body detection alarms, and package detection alarms to UNV-Link and NVR.
  • 3 MP + 2 MP dual cameras: The main camera for observing visitors, and the sub camera for monitoring the ground in front of the door, providing a wider view.
  • Supports noise suppression.
  • Supports true HDR and WDR, capturing clearer images in backlit scenes.
  • Supports calling the UNV-Link app, allows you to answer visitor calls anytime, anywhere using the app.  Supports Sub-1GHz wireless chime.
  • Supports dual-band Wi-Fi (2.4 GHz and 5 GHz) and Wi-Fi 6, faster video streaming and real-time monitoring.   Supports network connection through Bluetooth, quick and simple.
  • Built-in 8 GB eMMC storage, no extra storage costs necessary.

Model

ED-525B-WB

Camera

Resolution -- main camera

3MP

Resolution -- sub camera

2MP



FOV -- main camera

Horizontal: 116°

Vertical: 82.5°

Diagonal: 131°



FOV -- sub camera

Horizontal: 96.8°

Vertical: 52.6°

Diagonal: 109.9°

Power kit

power kit

240 mAH rechargeable lithium battery (for mechanical chime)

Charge temperature

0 °C to 45 °C

Alarm Event

Motion detection alarm

Support

UMD alarm

Supports human body detection alarm

Package detection alarm

Support

Wi-Fi

Operating frequency band

2.4 GHz and 5G Hz

BLE function

Compatible, integrated BLE, supports network connection via Bluetooth

Antenna type

Built-in omnidirectional antenna

WLAN

802.11 b/g/n/ax

Encryption

WPA-PSK/WPA2-PSK/WPA3-personal

Bluetooth

Support, integrated in Wi-Fi chip

SUB-1G

SUB-1G

Supported, for chime connection

Chimes

Max. 3 wireless chimes or 1 mechanical chime

Interface

Reset button

1 micro switch for both pairing and reset

Built-in Mic

Support

Built-in speaker

Support

Interface protocol

UNV private protocol

Network protocol

TCP/IP, IPv4, HTTP, RTP, RTSP, NTP

Illuminator

Illumination scheme

IR + white light

Illumination distance

IR: 5 meters

White light: 2 meters

Min. Illumination

0.02 lux

General

Dimensions

55.8 mm × 156.5 mm × 27.9 mm



Weight

Net weight: 142g Gross weight: 295g

Power consumption

10W

Installation method

With bracket installation, the power cable is installed on the bracket, and the doorbell is

connected to the bracket through the contacts.

Button

One call button

Power source

Contact: AC 12 V to 24 V

Operating temperature

-30 °C to 60 °C

Ingress protection

IP65

WDR

WDR

Supports DWDR, main camera 80dB, sub camera 58dB

Video

Video compression

H.265, H.264

Audio

Audio bit rate

128 Kbps

Audio sampling rate

8K

Audio compression

G711, MP3, PCM

Certification

Certification

CB, CE LVD, CE EMC, CE RED, FCC SDOC, FCC ID
