GX-PTZ-3539-1 | HD/Thermal PTZ Camera
Data Sheet
Product Code:
Product Code:
GX-PTZ-3539-1
Summary:Rugged dual-imaging PTZ camera, High-definition 1080p imager, 17 μm uncooled thermal imaging module, 316L stainless steel enclosure, Designed for harsh environments

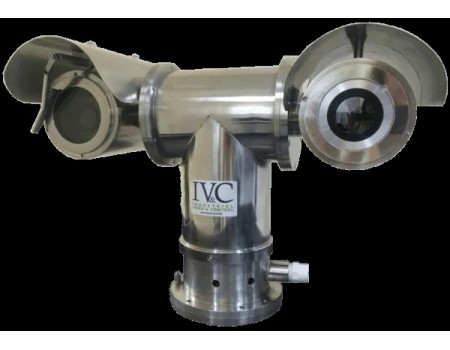

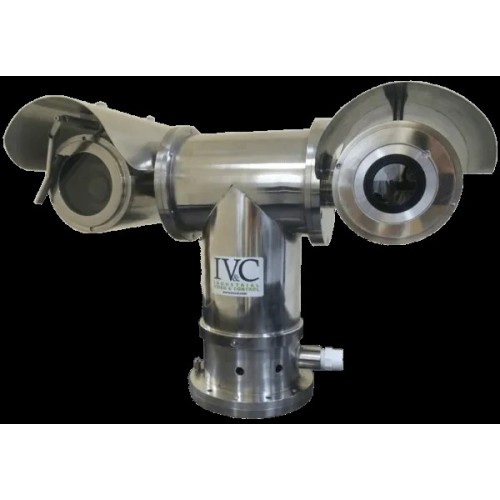

The GX-PTZ-3539-1 is a high quality, dual imaging thermal video camera. The unit includes an HD imager with 30x motor-driven optical zoom and a thermal imager with 640 x 480 resolution. Both cameras are mounted on a rugged pan-tilt unit.
The high-performance optical camera automatically switches to black and white and removes an IR cut filter to increase sensitivity in low light conditions. The uncooled microbolometer thermal camera provides clear images during day, night, and challenging environmental conditions such as smoke, dust, haze and fog.
The cameras are housed in a 316L stainless-steel enclosure rated IP67, making it suitable for use in harsh conditions. The camera is IP ready and only requires power and a network connection.
|
OPTICAL CAMERA
|
|||
| Imager | 1.28? Sony CMOS | Resolution | 1080 HD |
| Shutter | 1 to 1/10,000 seconds | Minimum Illumination | Color: 0.05 Lux B/W: 0.02 Lux |
| White Balance | Auto and Manual | Iris | Auto and Manual |
| Focus | Auto and Manual | View Angle | 2.34° – 59.8° |
| Focal Length | 4.5 – 144mm | F-number | 1.6 – 4.8 |
| Zoom ratio | 30x Optical | ||
|
THERMAL CAMERA
|
|||
| Focal Plane Array | 640 x 480 microbolometer | Spectral Range | 8-14 ?m LWIR |
| Focal Length | See lens options | Field of View | See lens options |
| Resolution | 640 x 480 | NETD | <50 mK |
|
GENERAL
|
|||
| Ethernet | 100BASE-T (RJ-45) | Pan Angle | 360° |
| Protocols | IPv4, TCP/IP, UDP, HTTP, DHCP, RTP/RTCP/RTSP, FTP, UPnP, DDNS, NTP, IGMP, ICMP |
Pan Speed | 40° per second |
| Tilt Angle | -90° to 90° (180° view range) | Tilt Speed | 40° per second |
| Voltage Required | 90 – 240 VAC | Weight | 48.5 lbs. |
| Current | ? 500mA | Operating Temperature | -25° to 50° C |
| Dimensions | 15.3” H x 13.4” W x 9.2” D | Mount | Pedestal |
| Rating | IP67, NEMA TYPE 4 |
