Data Sheet

Product Code:

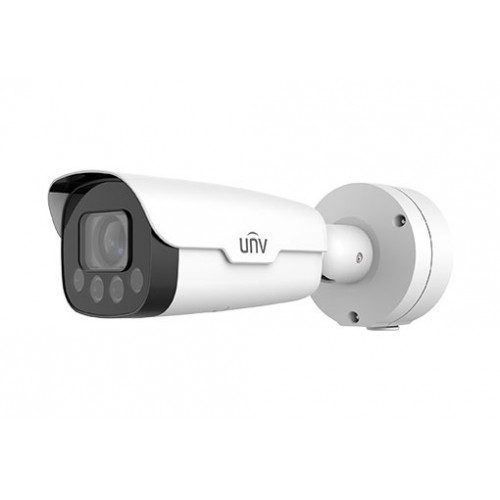

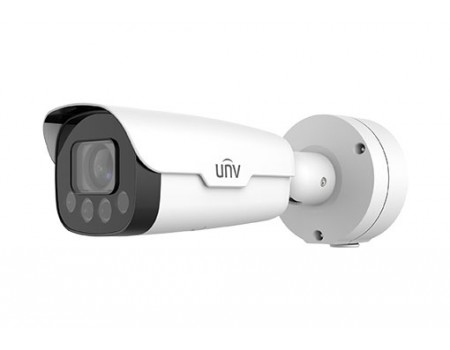

IPC262EB-HDX10K-I0

Summary:

2MP, 1920x1080@60fps, Ultra265, 120dB WDR, IR, up to 100m (328ft), Audio, Alarm, MicroSD slot, IP67, IK10, 5-50mm, 10X, Motorized VF, PoE

  • High quality image with 2MP,1/2.8’’ CMOS sensor
  • 1920*1080@60fps in the main stream
  • Ultra 265, H.265, H.264, MJPEG
  • Five streams offer more choices for different clients in an integrated solution
  • 10X optical zoom allows for closer viewing of subjects
  • LightHunter technology ensures ultra-high image quality in low illumination environment
  • Up to 120 dB Optical WDR (Wide Dynamic Range)
  • Built-in heater, support normal start-up at low temperature
  • DC12V or PoE+(IEEE 802.3at) power supply
Model # IPC262EB-HDX10K-I0
Camera
Sensor 1/2.8", 2.0 megapixel, progressive scan, CMOS
Min. Illumination Colour:0.002 lux (F1.6, AGC ON)
0 lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
WDR 120dB
S/N >52dB
Lens
Lens type 5~50mm@F1.6, AF automatic focusing and motorized zoom lens
Iris DC-iris
Angle of View (H) 4.71°~55.87°
Angle of View (V) 2.65°~33.21°
Angle of View (O) 5.56°~68.72°
DORI
DORI Distance

Lens (5mm), Detect 82.2m(269.8ft), Observe 32.9m(107.9ft), Recognize 16.4m(54.0ft), Identify 8.2m(27.0ft)
Lens (50mm), Detect 977.6m(3207.3ft), Observe 391.0m(1282.9ft), Recognize 195.5m(641.5ft), Identify 97.8m(320.7ft)

Illuminator
IR Range Up to 100m (328.1 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 2MP (1920*1080),Max 60fps;
Sub Stream: 1080P (1920*1080), Max 60fps;
Third Stream: D1 (720*576), Max 60fps;
Fourth Stream: D1 (720*576), Max 60fps;
Fifth Stream: D1 (720*576), Max 60fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
ROI Up to 8 areas
Video stream Five streams
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas per scene
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC Support
BLC Support
Defog Digital Defog
Events
Basic Detection Motion detection, Audio detection, Tampering alarm
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8KHz
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation, EZLive, EZView
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Audio I/O 1/1
Alarm I/O 2/1
Serial Port 1 RS485
Built-in Mic N/A
Built-in Speaker N/A
Built-in Heater Support
WIFI N/A
Network 1 * RJ45 10M/100M Base-TX Ethernet
Video Output 1 BNC
Certification
EMC FCC CFR 47 Part 15, EN 55032:2015, EN 55024:2010, EN 61000-3-2:2014, EN 61000-3-3-2013
Safety IEC 62368-1, EN 62368-1, UL 60950-1
Environment CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
General
Power DC12V(+/-25%) , PoE+ (IEEE 802.3at)
Power consumption: Max 13W
Power Interface Dia. 5.5mm coaxial power plug
Dimensions (L x W x H) 354 x 105 x 98mm (13.9" x 4.1" x 3.9”)
Weight 1.93kg(4.25lb)
Working Environment -40°C~60°C(-40°F ~ 140°F), Humidity: </=95% RH (non-condensing)
Storage Environment -40°C~70°C(-40°F ~ 158°F), Humidity: </=95% RH (non-condensing)
Surge protection 6KV
Reset button Support
Heater Support
Protection Ingression protection: IP67
Vandal resistant: IK10
