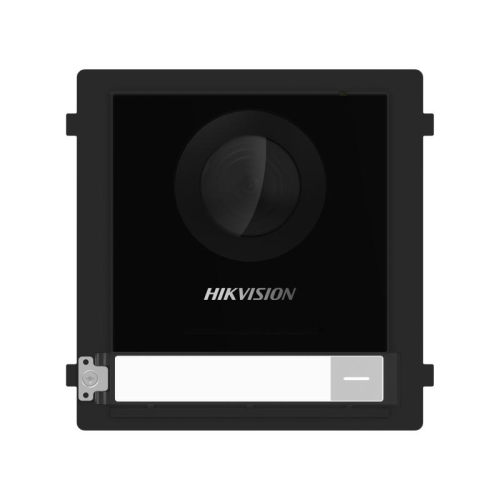

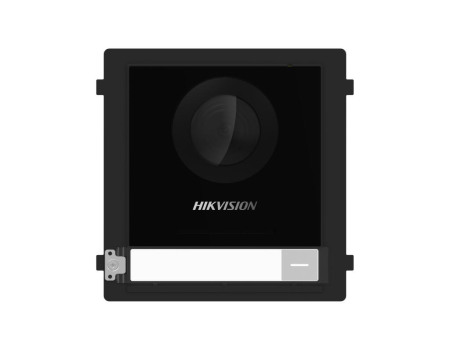

Hikvision Two wire main unit
Data Sheet
Product Code:
Product Code:
DS-KD8003Y-IME2
Summary:Two-wire version: CMOS 2MP HD Colorful Camera, Fish eye (Horizontal: 146°, Vertical:82° ), 1 Call Button, 2-ch Indoor station access IR Supplement , 10M/100M Self-adaptive Ethernet, module connection with RS-485 , 4-ch alarm input IP65, Two -wire interface,98mmx99.8mmx43.9mm Mouting accessories and other modules are same as IP version of modular door station.
- 2-Wire main unit of modular door station
- 2MP fisheye camera with IR supplement
- One call Physical Button For easier calls
- Two-lock control
- IP65 protection level
- Convenient configuration via Web remotely
- Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply
|
System parameters |
|
|
Operation system |
Embedded Linux operation system |
|
ROM |
32 MB |
|
RAM |
256 MB |
|
Processor |
Embedded Processor |
|
Display parameters |
|
|
Screen size |
/ |
|
Operation method |
/ |
|
Type |
/ |
|
Resolution |
/ |
|
Video parameters |
|
|
Lens |
1 |
|
Resolution |
2 MP |
|
FOV |
Horizontal: 146°, Vertical: 82° |
|
Wide dynamic range (WDR) |
Support |
|
Supplement light |
IR light, up to 3 m |
|
Video compression standard |
H.264 |
|
Audio parameters |
|
|
Audio input |
1 built-in omnidirectional microphone |
|
Audio compression standard |
G.711 U, G.711 A |
|
Audio output |
1 built-in loudspeaker |
|
Audio compression bitrate |
64 Kbps |
|
Audio quality |
Noise suppression and echo cancellation |
|
Volume adjustment |
Adjustable |
|
Capacity |
|
|
User capacity |
2000 |
|
Face capacity |
NA |
|
Fingerprint capacity |
/ |
|
Message capacity |
/ |
|
Linked indoor station capacity |
500 |
|
Sub door station capacity |
16 |
|
Network parameters |
|
|
Network protocol |
NA |
|
Wi-Fi |
/ |
|
Bluetooth |
/ |
|
3G/4G |
/ |
|
Device interfaces |
|
|
Alarm input |
4 (2 exit buttons and 2 door contacts by default) |
|
Network interface |
NA |
|
TAMPER |
1 |
|
Exit button |
2 (2 for lock control) |
|
RS-485 |
1 (1 for Hikvision's sub module communication) |
|
USB |
NA |
|
Wiegand |
NA |
|
TF card |
NA |
|
Alarm output |
NA |
|
Lock control |
2 relays, Max. to 30 VDC, 2 A |
|
Door contact input |
2 |
|
Two-Wire IP interface |
1 |
|
General |
|
|
Button |
1 |
|
Installation |
Surface mounting, flush mounting |
|
Indicator |
/ |
|
Weight |
Net weight: 0.380 kg Gross weight: 0.541 kg |
|
Protective level |
IP65 |
|
Working temperature |
-40° C to 60° C (-22° F to 140° F) |
|
Working humidity |
10% to 90% |
|
Dimension (W × H × D) |
100 mm × 98 mm × 42 mm |
|
Battery |
/ |
|
Power supply |
Powered by KAD704Y or KAD706Y series distributor |
|
Application environment |
Outdoor |
|
Power consumption |
</= 4 W |
|
Language |
English,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish, Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croa tian,Serbian,Greek,Slovak |
