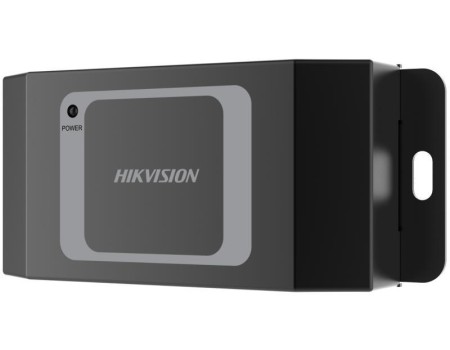

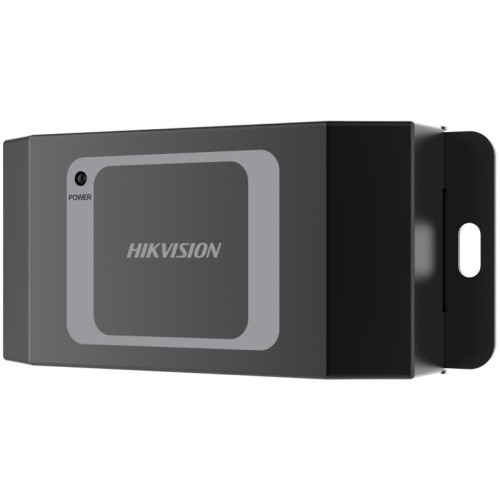

HIKVISION Secure Door Control Module
Data Sheet
Product Code:
Product Code:
DS-K2M061
Summary:Secure module. Communicates with the access control terminal via RS-485 to execute the commands from the terminal including open door, close door, normally open and normally closed Input interface: Door Magnetic×1, Tamper-proof×1, Alarm input x2; Output interface: Door Switch Relay×1, Alarm Relay×1. DC 12V. Dimensions：48 mm × 115 mm × 26 mm (1.9" × 4.5" × 1.0")
- Communicates with the access control terminal via RS-485 to execute the commands from the terminal including open door, close door, normally open and normally closed
- Collects the door magnetic signal, the exit button signal and the tamper-proof signal and send them to the access control terminal
- Supports tampering alarm
- Supports RS-485 communication indicators to show the communication status
- 4-ch DIP switch supporting ID No. configuration
- Supports a Wiegand interface to connect a Wiegand card reader to enter/exist access control terminal by swiping card
- Fire interface and exit button linkage
Interface
- Lock control1
- Exit button1
- Door contact input1
- Alarm input2
- Alarm output1
- RS-4851
- Wiegand1
General
- Indicator1 for power supply
- Power supply12 VDC 0.5A
- Working temperature-40 °C to 70 °C
- Working humidity0% to 90%
- Dimensions48 mm × 115 mm × 26 mm (1.9" × 4.5" × 1.0")
- InstallationWall Mounting
