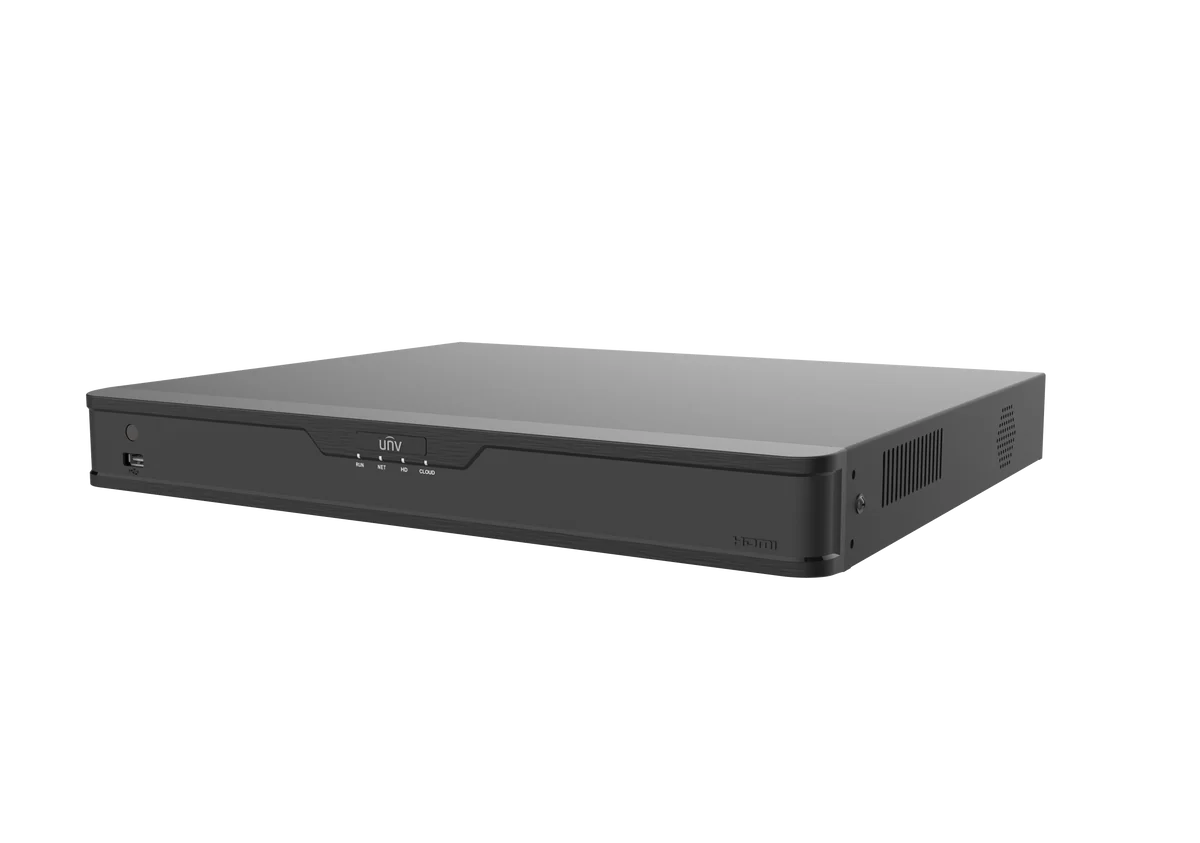

Model: XVR302-32Q4
Available in stock
Send a copy to email:
Open here
Couldn't load pickup availability
- Support 265/H.264 video formats
- Support audio over coaxial cable(only for TVI cameras)
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 16/32-channel BNC input
- Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160)
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Supports two-way audio when paired with specific front-end analog （UAC-B142-ACF28LM-DL, UAC-B142-ACF40LM-DL, UAC-T142-ACF28LM-DL, UAC-T142-ACF40LM-DL）
|
Model |
XVR302-16Q4 |
XVR302-32Q4 |
|
Video/Audio Input |
||
|
IP Video Input |
8-ch |
4-ch |
|
Analog Video Input |
16-ch, BNC |
32-ch, BNC |
|
Max IP Video Input |
24-ch |
36-ch |
|
|
Support AHD input: |
|
|
|
8MP@15fps |
|
|
|
5MP@20fps |
|
|
|
5MP@12fps |
|
|
|
4MP@30fps |
|
|
|
4MP@25fps |
|
|
|
4MP@15fps |
|
|
|
1080P@30fps |
|
|
|
1080P@25fps |
|
|
|
720P@30fps |
|
|
|
720P@25fps |
|
|
|
Support TVI input: |
|
|
|
8MP@15fps |
|
|
|
8MP@12fps |
|
|
|
3K@20fps |
|
|
|
5MP@20fps |
|
|
|
5MP@12fps |
|
|
Supported Analog Camera |
4MP@30fps |
|
|
Types |
4MP@25fps |
|
|
|
4MP@15fps |
|
|
|
1080P@30fps |
|
|
|
1080P@25fps |
|
|
|
720P@30fps |
|
|
|
720P@25fps |
|
|
|
Support CVI input: |
|
|
|
8MP@15fps |
|
|
|
8MP@12fps |
|
|
|
5MP@25fps |
|
|
|
5MP@20fps |
|
|
|
4MP@30fps |
|
|
|
4MP@25fps |
|
|
|
1080P@30fps |
|
|
|
1080P@25fps |
|
|
|
720P@30fps |
|
|
|
720P@25fps |
|
|
|
Support CVBS input |
|
|
BNC Audio Input |
16-ch, channel audio |
32-ch, channel audio |
2
|
RCA Audio Input |
1-ch |
|
|
3.5mm Audio Input |
N/A |
|
|
Video/Audio Output |
||
|
Video Output |
Support 1-ch CVBS output, 1-ch HDMI, 1-ch VGA, VGA and HDMI simultaneous output |
|
|
HDMI Output |
HDMI: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|
|
VGA Output |
VGA: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|
|
HDMI Standard |
HDMI 1.4 |
|
|
BNC Video Output |
1-ch |
|
|
BNC Audio Output |
16-ch, channel audio |
N/A |
|
RCA Audio Output |
1-ch |
|
|
3.5mm Audio Output |
N/A |
|
|
Live View Display |
HDMI/VGA: 1/4/6/8/9/16/25 |
HDMI/VGA: 1/4/6/8/9/16/25/36 |
|
Default Num of Live Screen |
VGA: 16; HDMI: 16 |
VGA: 36; HDMI: 36 |
|
Playback Screen |
1/4/9/16 |
|
|
Encoding/Decoding |
||
|
Recording Resolution |
8MP Lite/3K Lite@12/5MP Lite/4MP Lite/1080P/720P/D1 |
|
|
Recording Frame Rate |
Main stream: 8MP Lite@8fps Sub stream: D1@8fps Third Stream: CIF@8fps Main stream: 3K Lite@12fps Sub stream: D1@12fps Third Stream: CIF@12fps Main stream: 5MP@6fps Sub stream: D1@6fps Third Stream: CIF@6fps Main stream: 5MP Lite@12fps Sub stream: D1@12fps Third Stream: CIF@12fps Main stream: 4MP@15fps Sub stream: D1@15fps Third Stream: CIF@15fps Main stream: 1080P@15fps Sub stream: D1@15fps Third Stream: CIF@15fps Main stream: 720P@30fps Sub stream: D1@30fps Third Stream: CIF@30fps |
|
|
Audio Sample Rate |
8 kHz, 16 bit per channel |
|
|
Audio Bit Rate |
64 Kbps per channel |
|
|
Decoding Capability |
Analog: 16 x 8MP Lite@8, 16 x 3K Lite@12, 16 x 5MP@6, 16 x 5MP Lite@12, 16 x 4MP@15, 16 x 1080P@15, 16 x 720P@30 IP: 2 x 8MP@30, 2 x 6MP@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30, 32 x D1@30 |
Analog: 32 x 8MP Lite@8, 32 x 3K Lite@12, 32 x 5MP@6, 32 x 5MP Lite@12, 32 x 4MP@15, 32 x 1080P@15, 32 x 720P@30 IP: 2 x 8MP@30, 2 x 6MP@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30, 32 x D1@30 |
3
|
Num of Concurrent Playback |
32-ch |
|
|
Num of Concurrent Playback in Local |
16-ch |
|
|
Coaxial Cable |
||
|
Analog camera Upgrade over Coaxial Cable |
Support |
|
|
Audio over Coaxial Cable(Form) |
16-ch, One-way Audio(TVI) |
32-ch, One-way Audio(TVI) |
|
Two-way Audio |
||
|
Two-way Audio |
1-ch |
|
|
Analog Snapshot |
||
|
FTP/Schedule/Event Snapshot |
Schedule/FTP/Event snapshot:24-ch snapshot, up to 3840*2160 resolution |
Schedule/FTP/Event snapshot:32-ch snapshot, up to 3840*2160 resolution |
|
Network |
||
|
Incoming Bandwidth |
80Mbps |
|
|
Outgoing Bandwidth |
160Mbps |
|
|
Max users can be added |
32 |
|
|
Remote Users |
128 |
|
|
Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, DNS, DDNS, SMTP, HTTPS |
|
|
Browser(Plugin) |
IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
|
|
Browser(Plugin-Free) |
Chrome 57+, Edge 16+, Firefox 58+, Safari 11+ |
|
|
Smart |
||
|
Analog Smart by XVR |
Ultra Motion Detection (UMD) , Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area) |
|
|
IP Smart by IPC |
Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking, People Flow Counting |
|
|
VCA Search |
Face Search, Behavior Search, People Counting Report |
|
|
Smart Functions by XVR |
2-ch (Face Detection)|4-ch (SIP)|16-ch (UMD) |
2-ch (Face Detection)|8-ch (SIP)|16-ch (UMD) |
|
Alarm |
||
|
General Alarm |
Motion |
|
|
Alert Alarm |
IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
|
|
GUI Language |
||
|
GUI Language |
38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
|
|
Hard Disk |
||
|
SATA |
2 SATA interfaces |
|
|
Capacity |
Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
|
|
Disk Group |
Support |
|
4
|
External Interface |
||
|
Network Interface |
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
|
|
Network Working Mode |
Single port, not involved |
|
|
USB |
Rear panel: 1 × USB2.0, 1 × USB3.0 |
|
|
RS485 |
1 |
|
|
RS232 |
N/A |
|
|
Alarm In |
4-ch |
|
|
Alarm Out |
1-ch |
|
|
Power Supply |
DC 12V/3.3 A |
|
|
Power Switch |
N/A |
|
|
Redundant Power Supply |
N/A |
|
|
Buzzer |
Support |
|
|
Working Environment |
||
|
Working Temperature |
-10 ℃ to 55 ℃ (14 ℉ to 131 ℉ ) |
|
|
Working Humidity |
≤ 95% RH (non-condensing) |
|
|
Power Consumption (without HDD) |
≤ 12W |
≤ 38W |
|
Heat Radiation |
Radiator |
|
|
Dimensions |
||
|
Dimensions |
380mm x 325.8mm x 53mm (15.0" x 12.8" x 2.1") |
|
|
Certification |
||
|
Certification |
CE, FCC, UL, RoHS, WEEE |
|
|
CE |
EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
|
|
FCC |
Part15 Subpart B |
|
|
Compliance |
||
|
NDAA Compliant |
Support |
|
|
Feature supported |
||
|
Cruise lines num of each camera |
4 |
|
|
Preset num |
32 |
|
|
N+1 Hot Spare |
N/A |
|
|
Fisheye Dewarping by IPC |
N/A |
|
|
Fisheye Dewarping by NVR (Local) |
N/A |
|
|
ANR |
Support |
|
|
Downlink ONVIF |
Support (Profile S) |
|
|
Uplink ONVIF |
N/A |
|
|
UCS(Web socket) |
N/A |
|
|
NAS |
Support |
|
|
Ucode Basic Mode(Analog) |
Support |
|
|
Ucode Basic Mode(IPC) |
Support |
|
