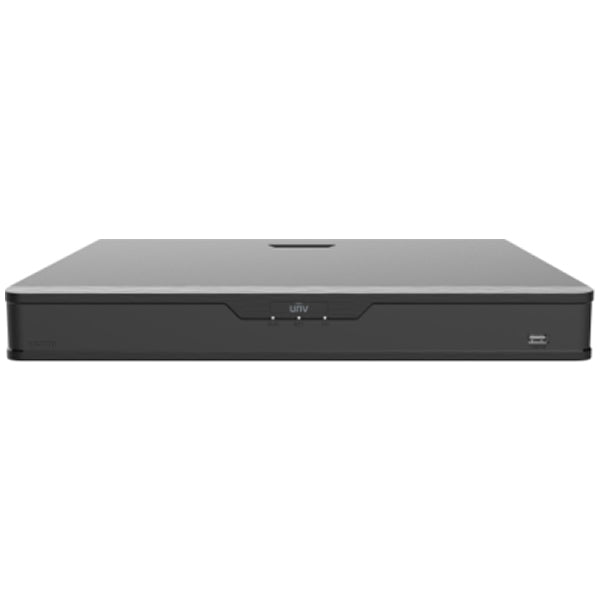

UNV Uniview 8MP Lite 32CH 2SATA Hybrid DVR
UNV Uniview 8MP Lite 32CH 2SATA Hybrid DVR
Model: XVR302-32Q3
Regular price
$694.55
Sale price
$694.55
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
32CH TVI/CVI/AHD/CVBS Up to 8MP Lite, 36CH IP up to 8MP, 80Mbps Incoming, 160Mbps Outgoing, H.265, 1x 4K HDMI, 1x VGA, 1x BNC, Analog: 16x8MP Lite@8fps, 16x2MP@15fps, 16x1MP@30fps, IP: 2x8MP@30fps, 8x2MP@30fps, 16x1MP@30fps, 2xSATA up to 8TB/ea, VCA, 1x RJ45 10/100/1000M, 1x USB2.0, 1x USB3.0, RS485, Audio 1in/1out, Alarm 4in/1out
Couldn't load pickup availability
- Support H.265/H.264 video formats
- Support audio over coaxial cable(only for Uniview CVI protocol cameras)
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 32-channel BNC input
- Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160)
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
| Video/Audio Input | Description |
| IP Video Input | 4-ch |
| Analog Video Input | 32-ch, BNC |
| Max IP Video Input | 36-ch |
| Supported Analog Camera Types | Support AHD input: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps, Support TVI input: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps, Support CVI input: 8MP@15fps, 5MP@25fps, 4MP@30fps, 1080P@30fps, 720P@30fps, Support CVBS input |
| BNC Audio Input | 32-ch, channel audio |
| RCA Audio Input | 1-ch |
| Video/Audio Output | Description |
| HDMI Output | HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| BNC Video Output | 1-ch |
| RCA Audio Output | 1-ch |
| Live View Display | HDMI/VGA: 1/4/6/8/9/25/36 |
| Encoding/Decoding | Description |
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite /1080P/720P/D1 |
| Recording Frame Rate | Main stream: 8MP Lite@8fps, Sub stream: D1@8fps, Main stream: 5MP Lite@12fps, Sub stream: D1@12fps, Main stream: 4MP Lite@15fps, Sub stream: D1@15fps, Main stream: 1080P@15fps, Sub stream: D1@15fps, Main stream: 720P@30fps, Sub stream: D1@30fps |
| Audio Sample Rate | 8KHz,16 bit per channel |
| Audio Bit Rate | 64Kbps per channel |
| Decoding Capability | Analog: 16 x 8MP Lite@8, 16x 5MP Lite@12, 16x 4MP Lite@15, 16 x 1080P@15, 16 x 720@30 IP: 16 x 720P@30, 8 x 1080P@30, 4 x 4MP@30, 2 x 8MP@30 |
| Num of Concurrent Playback in Local | 16-ch |
| Coaxial Cable | Description |
| Audio over Coaxial Cable(Form) | 32-ch, One-way Audio(only for Uniview CVI protocol cameras) |
| Two-way Audio | Description |
| Two-way Audio | 1-ch, RCA(Using the audio input and output) |
| Analog Snapshot | Description |
| FTP/Schedule/Event Snapshot | Schedule/FTP/Event snapshot:32-ch snapshot, up to 704*576 resolution |
| Network | Description |
| Incoming Bandwidth | 80Mbps (Up to 144Mbps after all analog channel conversion) |
| Outgoing Bandwidth | 160Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP;P2P;UPnP;DHCP;HTTP;HTTPS;DNS;DDNS;SMTP;NTP |
| Browser(Plugin) | Windows:IE(IE10/11),Firefox (version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above) |
| Smart | Description |
| Analog Smart by XVR | Ultra Motion Detection(UMD) |
| IP Smart by IPC | Face Detection;Defocus Detection;Scene Change Detection;Object Removed;Object Left Behind;Auto Tracking |
| VCA Search | Face Search;Behavior Search |
| Smart Functions by XVR | 16-ch(UMD) |
| Alarm | Description |
| General Alarm | Motion |
| Alert Alarm | IP Conflict;Network Disconnected;Disk offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal |
| Hard Disk | Description |
| SATA | 2 SATA interfaces |
| Capacity | Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| External Interface | Description |
| Network Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB | Rear panel: 1 x USB3.0;Front panel: 1 x USB2.0 |
| RS485 | 1 |
| Alarm In | 4-ch |
| Alarm Out | 1-ch |
| Power Supply | DC 12V/5A |
| Working Environment | Description |
| Working Temperature | -10°C ~ + 55°C ( +14°F ~ +131°F ) |
| Working Humidity | </= 90% RH(non-condensing) |
| Power Consumption (without HDD) | </= 38W |
| Dimensions | Description |
| Weight (without HDD) | </=2.6 Kg ( 5.72lb ) |
| Dimensions | 380mm ×326mm× 53mm (15.0" × 12.8"×2.1") |
| Certification | Description |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
