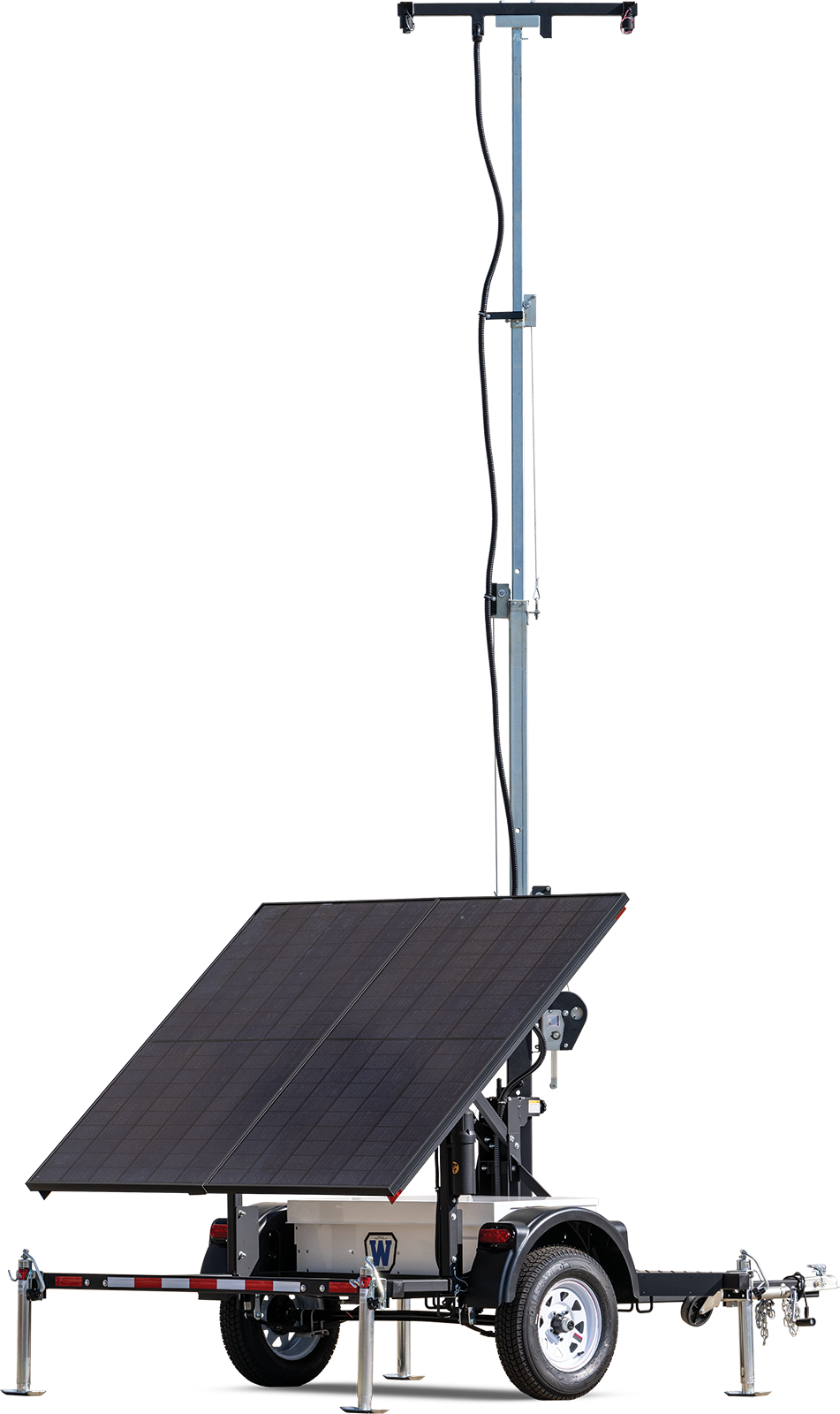

WCTS-SM3L-800 Small Solar Trailer with 20 FT Vertical Tower
WCTS-SM3L-800 Small Solar Trailer with 20 FT Vertical Tower
Model: WCTS-SM3L-800
Available in stock
Couldn't load pickup availability
Trailer: Tubular steel welded construction, solid frame rear bumper, front access forklift pockets, round full wheel fenders that are bolted to the trailer frame, axle assembly 2,000 lb., double-eye leaf springs, four 2,000 lb. stabilizer corner jacks, red and white conspicuity tape
Drawbar: Tilt-up, 2” ball hitch, swivel wheel tongue jack, flat-four trailer lights plug
Tower: 20-Foot vertical telescoping tower rotating 355 degrees, hand-operated winch for raising and lowering tower
Camera head mount: Two 1-1/2” NPT pendant mounts
Tower wiring: Inside liquid tight plastic loom, 3X CAT5E cables 1x 16 / 2 power, 1 Grnd
Battery and Solar Configurations: Single Wanco security battery box with hinged lid, 29V Lithium-Ion Batteries (6.6kWh Usable Total Capacity), 40 Amp battery charger, Victron Smart MPPT controller, battery protect, State-of- Charge meter, monitoring with Cerbo GX
Battery Box: Opening lid puck lock security box, equipment tray over batteries (15” x 30”), Battery Terminal Cover
Solar: High-efficiency photovoltaic solar modules, hand crank adjustable-tilt solar panel array, 800W Solar Panel total capacity
Standard color: Powder coated flat black trailer frame and mast, white battery box
