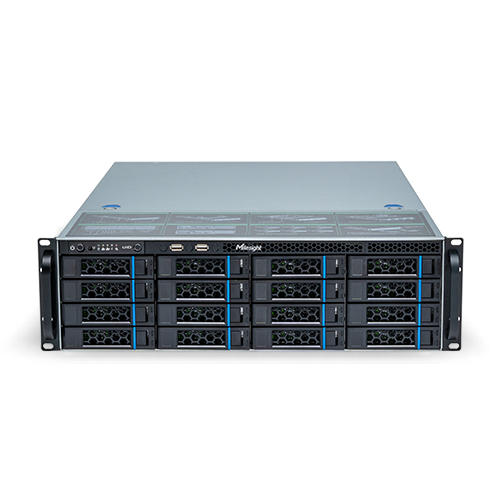

MileSight Enterprise NVR with 128-CH License, 16 Disk Slots.3U
MileSight Enterprise NVR with 128-CH License, 16 Disk Slots.3U
Model: VE1608-A1
Regular price
$14,512.50
Sale price
$14,512.50
Regular price
Available in stock
Open here
Couldn't load pickup availability
- Integrate with Milesight network cameras, sensors and 3rd party network cameras
- Support up to 16*20TB storage and expandable storage capacity
- Pre-loaded with Milesight VMS Server & Client
- Central Management for single and multiple sites
- N+M Failover ensures data security
- Windows-based operating system
- Support RAID 0, 1, 5, 6, 10, 50,60
- Support 1*2.5Gbps, 2*100Mbps LAN port
- 4* DDR4 Slot(2*8GB Pre-installed)
- 2*HDMI Port, 1*DP Port(Support independent and synchronous display)
- 1* BNC In + 1*BNC Out
- Front panel: 2*USB 3.0 + Rear panel: 4*USB 2.0+2*USB 3.2 Gen2
- AC 100-240V, 50-60Hz, redundant power supply
| VE1604-A1 | VE1608-A1 |
|---|---|
| Devices | |
| 64 | 128 |
| Recording | |
| 64 | 128 |
| Bandwidth | |
| 1920Mbps | 1920Mbps |
| OutgoingBandwidth | |
| 1920Mbps | 1920Mbps |
| Decoding | |
| MJPEG,H.264,H.265 | MJPEG,H.264,H.265 |
| DecodingResolution | |
| Upto12MP | Upto12MP |
| DecodingCapability | |
| 12MP(4000*3000)@20fps=6CH 8MP(3840*2160)@30fps=6CH 2MP(1920*1080)@30fps=39CH 720P(1280*720)@30fps=52CH D1(704*576)@30fps=64ch | 12MP(4000*3000)@20fps=6CH 8MP(3840*2160)@30fps=6CH 2MP(1920*1080)@30fps=39CH 720P(1280*720)@30fps=52CH D1(704*576)@30fps=64ch |
| Event&Alarm | |
| 1000 | 1000 |
| Users&Roles | |
| 300 | 300 |
| Users | |
| 1000 | 1000 |
| Roles | |
| 100 | 100 |
| LocalViewing | |
| Support | Support |
| System | |
| IntelCore12thi5 | IntelCore12thi7 |
| Memory | |
| 2*8GBDDR4 | 2*8GBDDR4 |
| NetworkInterface | |
| 2*1000MbpsRJ-45ports 1*2.5GbpsRJ-45ports | 2*1000MbpsRJ-45ports 1*2.5GbpsRJ-45ports |
| OperatingSystem | |
| MicrosoftWindows10IoTEnterprise64bit | MicrosoftWindows10IoTEnterprise64bit |
| GPUOptions | |
| IntegratedGPU | IntegratedGPU |
| AutoPowerOn | |
| Support | Support |
| Auxiliary Interface | |
| 16*SATA(3.5"or2.5") Supporthot-plug | 16*SATA(3.5"or2.5") Supporthot-plug |
| SSDDrive(OperatingSystem) | |
| 2*M.2SSD(1*250GBPre-installed) | 2*M.2SSD(1*250GBPre-installed) |
| RAM | |
| 4*DDR4Slot(2*8GBPre-installed,upto4*32GB) SupportDual-ChannelMode | 4*DDR4Slot(2*8GBPre-installed,upto4*32GB) SupportDual-ChannelMode |
| Capacity | |
| Upto20TBcapacityforeachdisk | Upto20TBcapacityforeachdisk |
| RAID | |
| SupportRAID0,1,5,6,10,50,60 | SupportRAID0,1,5,6,10,50,60 |
| LAN | |
| 1*2.5Gbps,2*1000Mbps | 1*2.5Gbps,2*1000Mbps |
| Display | |
| 2*HDMIPort,1*DPPort Supportindependentandsynchronousdisplay | 2*HDMIPort,1*DPPort Supportindependentandsynchronousdisplay |
| Audio | |
| 3*AudioJacks | 3*AudioJacks |
| USBInterface | |
| Frontpanel:2*USB2.0;Rearpanel:4*USB2.0,2*USB3.2Gen2 | Frontpanel:2*USB2.0;Rearpanel:4*USB2.0,2*USB3.2Gen2 |
| PowerSupply | |
| AC100-240V,50-60Hz,redundantpowersupply | AC100-240V,50-60Hz,redundantpowersupply |
| General | |
| 3U | 3U |
| Consumption | |
| ≦75W(withoutHDD) | ≦75W(withoutHDD) |
| WorkingTemperature | |
| 0°Cto+50°C(32°Fto122°F) | 0°Cto+50°C(32°Fto122°F) |
| WorkingHumidity | |
| 10%to90%RH(nofreezingandnocondensation) | 10%to90%RH(nofreezingandnocondensation) |
| Weight | |
| 17kg(withoutrail)/19kg(withrail) | 17kg(withoutrail)/19kg(withrail) |
| Dimensions | |
| 480X675X133.5mm | 480X675X133.5mm |
| Warranty | |
| 3Years | 3Years |
